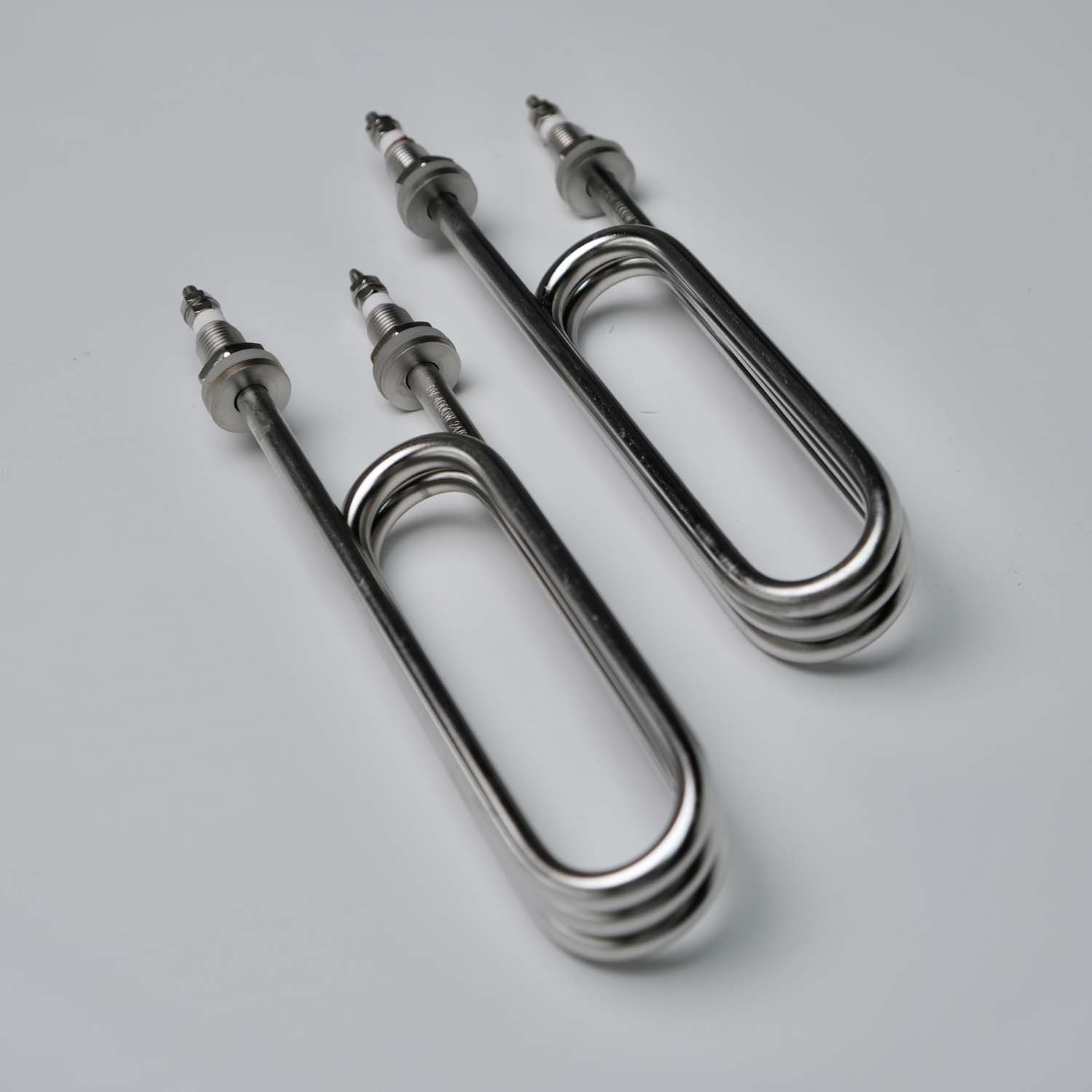

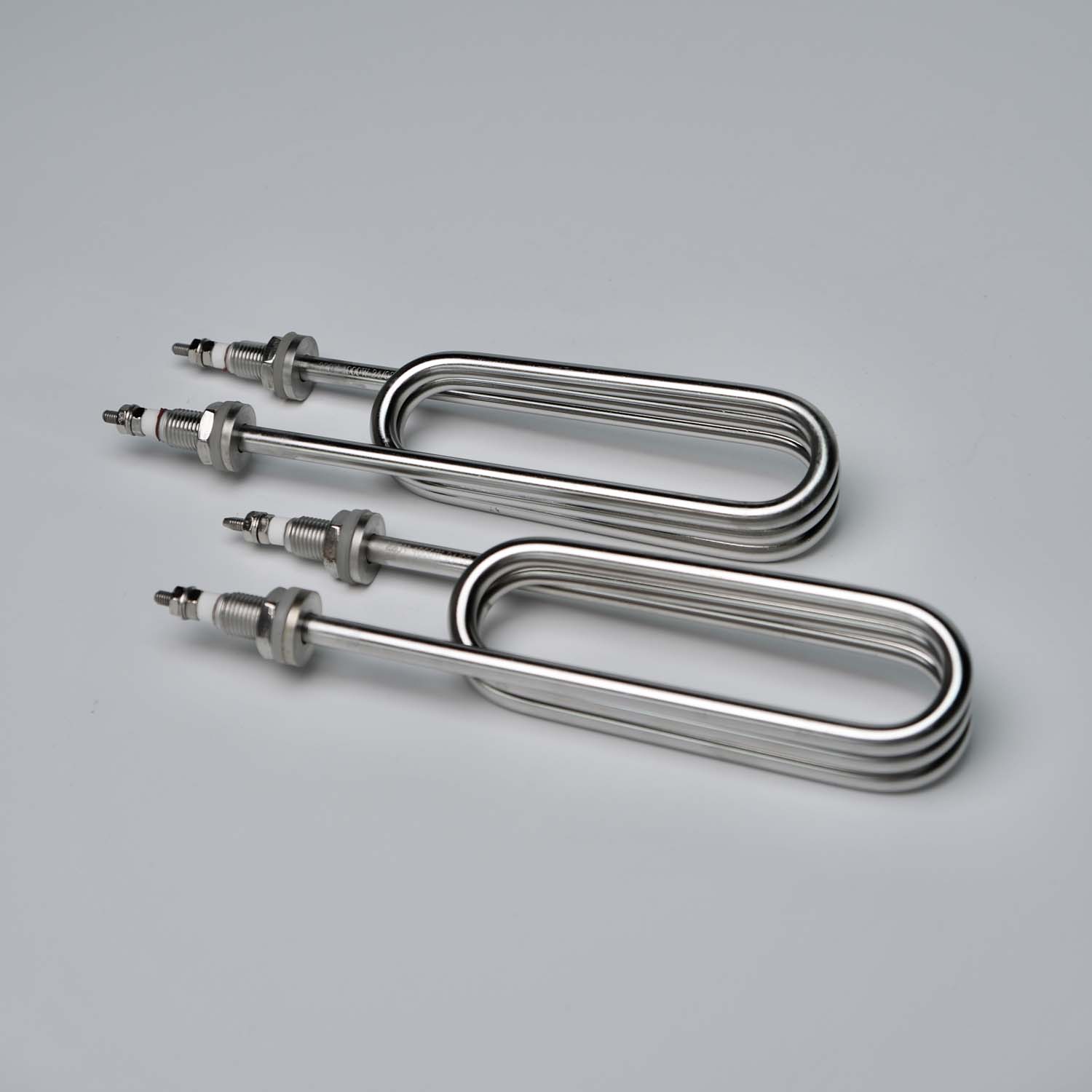

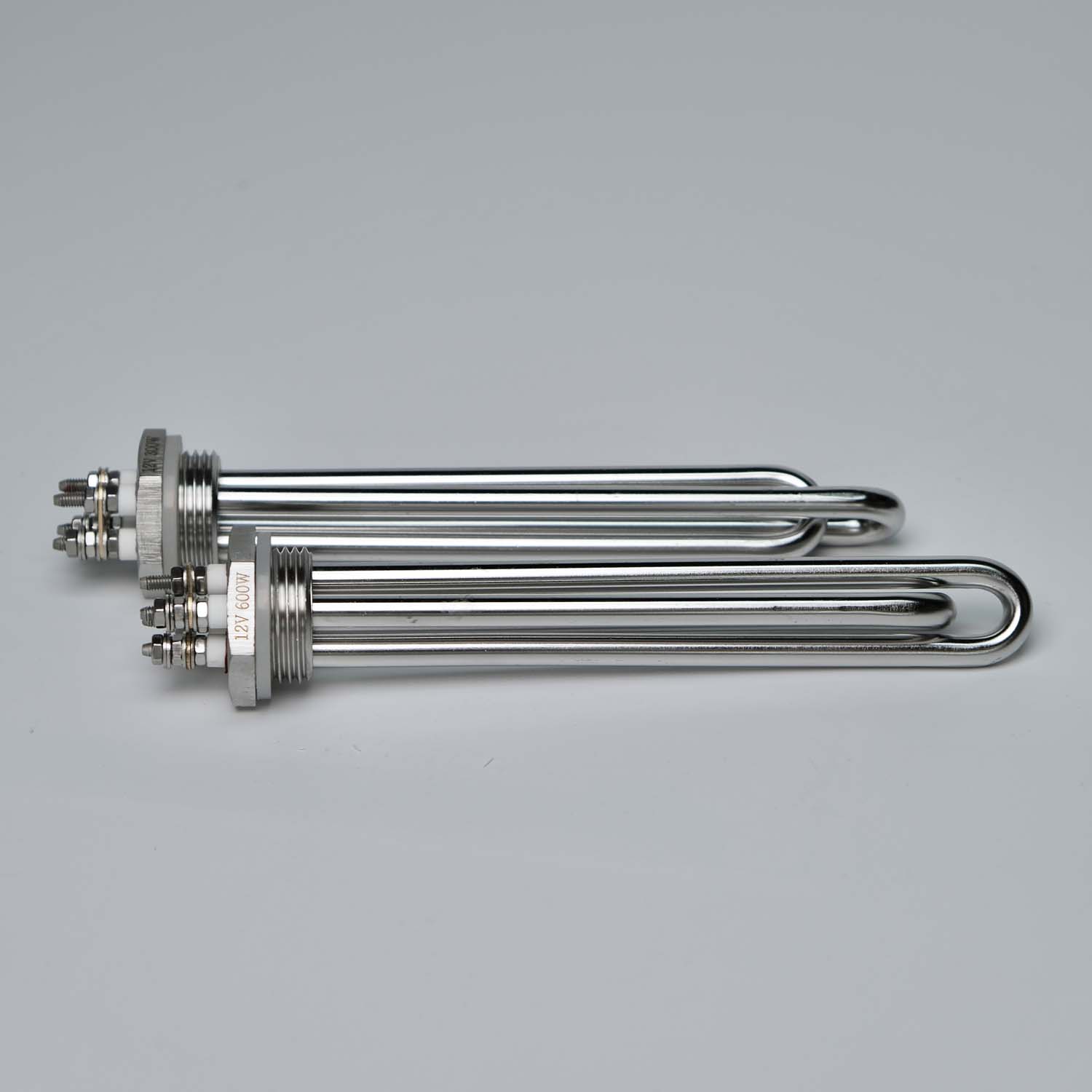

The U-shaped steaming oven heating element is specially designed for steam generators, steam ovens, and food heating equipment.
It adopts a U-shaped structure that provides compact installation, uniform heat distribution, and excellent energy efficiency.
The element is made from stainless steel, copper, or nickel–iron–chromium alloy, ensuring outstanding corrosion resistance and durability in humid and high-temperature environments.
Inside the tube, a Ni–Cr resistance wire generates heat that is conducted through high-purity magnesium oxide nickel–iron–chromium alloy insulation powder to the outer metal sheath.
This heat is then transferred evenly to the surrounding water or air, efficiently producing steam or hot air for food heating and sterilization.
Its moisture-resistant design, fast heating response, and long service life make it an ideal choice for commercial and industrial steam cooking equipment.
| Item | Specification |
| Material | Stainless Steel / Copper / Nickel-Iron-Chromium Alloy |
| Structure Type | U-Shaped Heating Tube |
| Tube Diameter | Φ6–16mm |
| Heating Length | 150–2000mm (Customizable) |
| Rated Voltage | 110V–480V |
| Power Range | 300W–10kW |
| Heating Wire | Ni-Cr Resistance Wire |
| Insulation Material | High-Purity Magnesium Oxide (MgO) |
| Sheath Surface Temperature | ≤850°C |
| Installation Type | Threaded / Flanged / Embedded |
| Surface Treatment | Polished / Passivated / Anti-Oxidation |
| Service Life | ≥10,000 hours under rated conditions |
● High Efficiency: U-shaped structure ensures rapid and uniform heat transfer.
● Moisture Resistant: Designed for use in humid and steam-rich environments.
● Durable Construction: Made with corrosion-resistant stainless steel or nickel–iron–chromium alloy.
● Energy Saving: Excellent thermal conductivity and optimized heat distribution reduce energy loss.
● Customizable: Voltage, power, length, and shape can be tailored for specific equipment.
● Safe and Reliable: Stable insulation and anti-leakage performance for long-term operation.
● Commercial steam ovens and steam cabinets
● Food steamers and industrial steaming machines
● Kitchen and catering equipment
● Sterilization and drying equipment
● Laboratory steam generation systems
