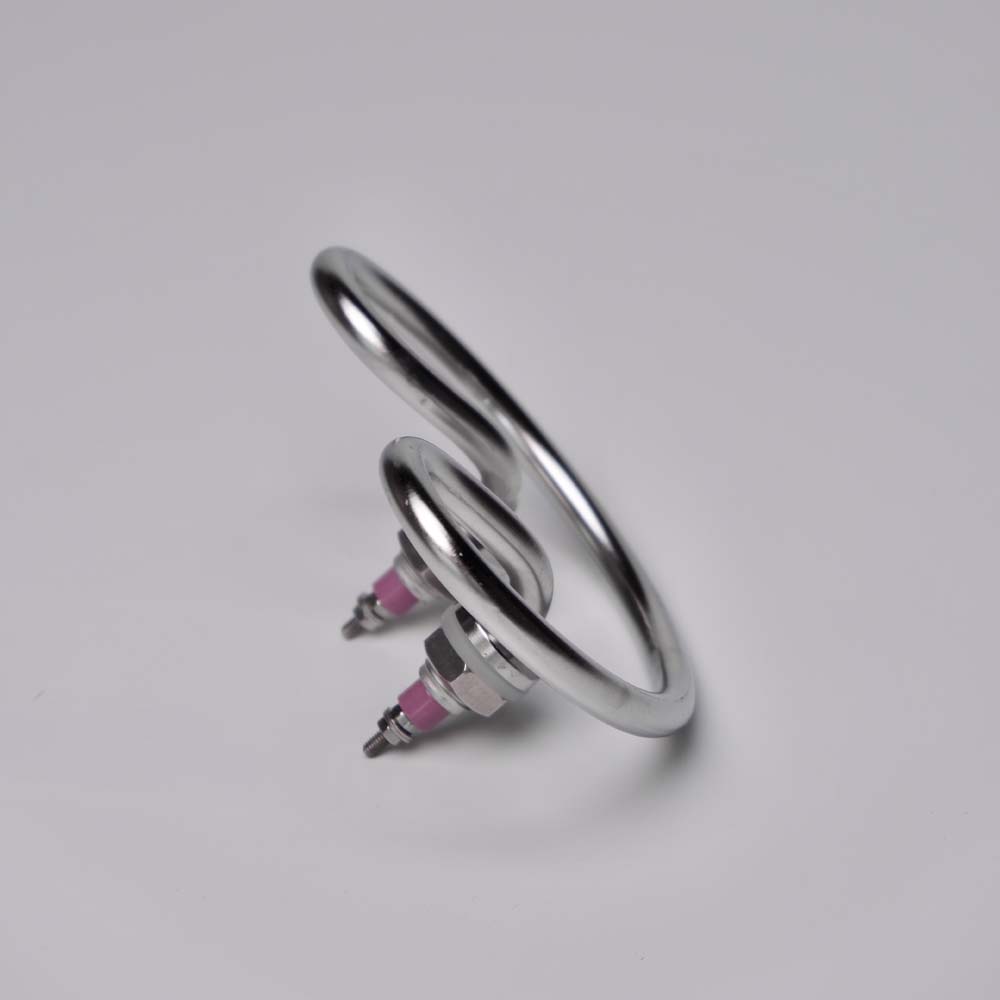

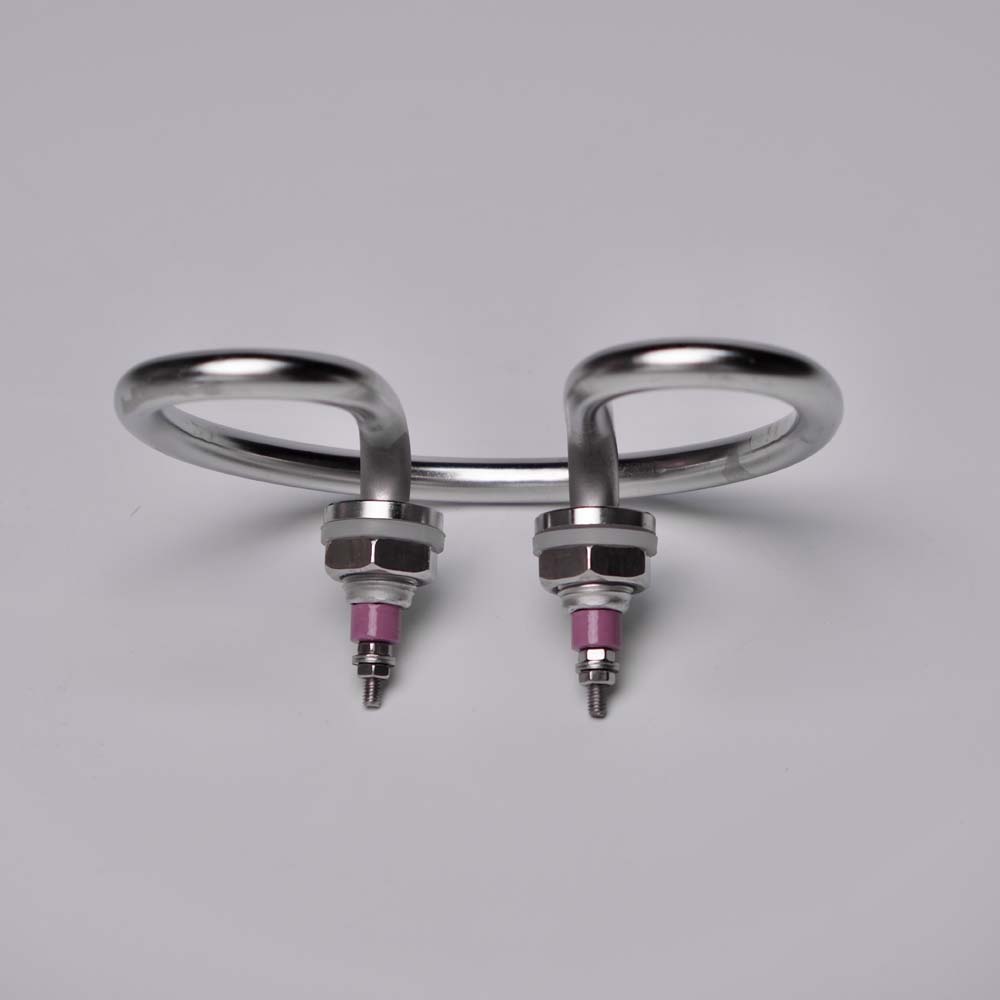

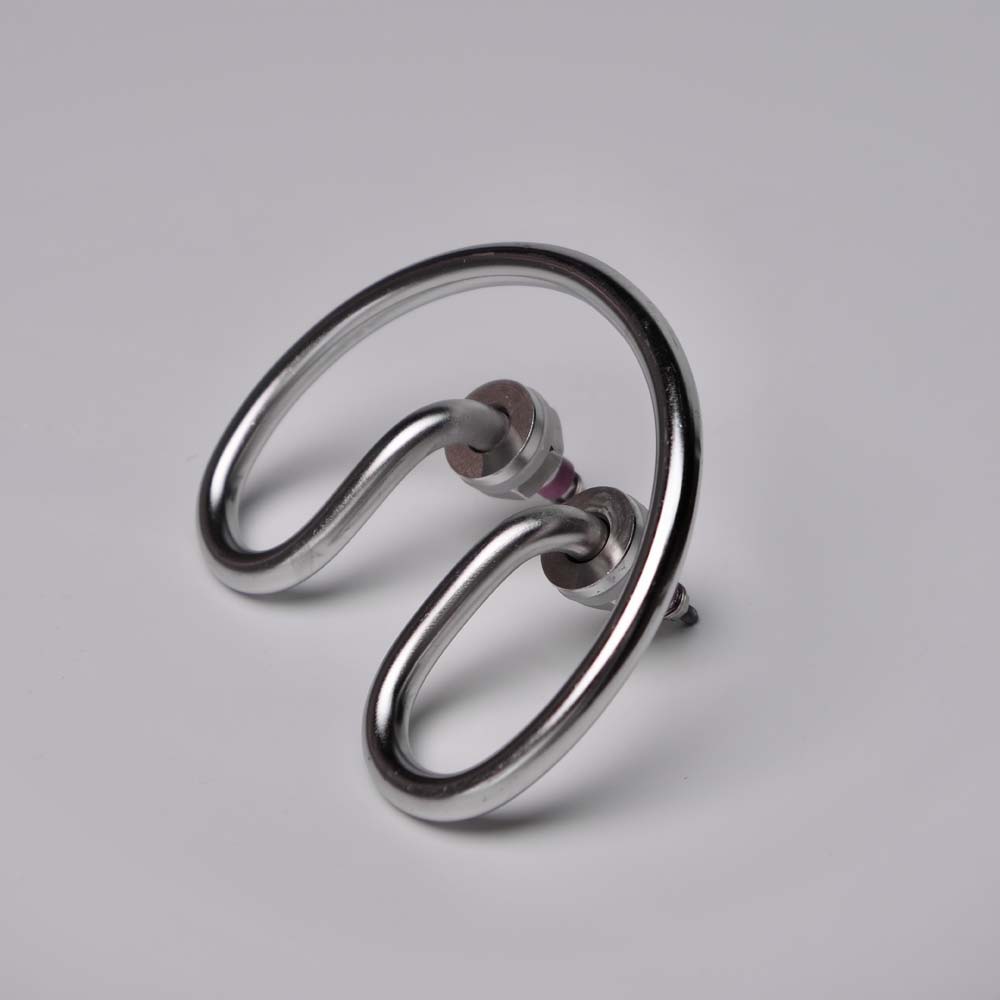

The double-ended heating element is designed with heating terminals on both ends, allowing easy installation and efficient heat transfer in confined spaces.
It provides uniform heating performance, making it ideal for applications requiring stable and reliable heat output in water, oil, air, or solid heating systems.
Inside the tube, an Ni–Cr resistance wire is precisely positioned and insulated with high-purity magnesium oxide Nickel–Iron–Chromium Alloy powder. The generated heat is rapidly transferred through the stainless steel, copper, or nickel–iron–chromium alloy sheath to the target medium.
This design ensures fast heating, high efficiency, and long service life, even under high-temperature or continuous operation conditions.
Its double-ended structure enhances mechanical stability and electrical safety, widely used in industrial and household heating systems.
| Item | Specification |
| Material | Stainless Steel / Copper / Nickel-Iron-Chromium Alloy |
| Structure Type | Double-Ended Straight / U-Shaped / Custom Design |
| Tube Diameter | Φ6–20mm |
| Heating Length | 100–3000mm (Customizable) |
| Rated Voltage | 12V–480V |
| Power Range | 200W–30kW |
| Heating Wire | Ni-Cr Resistance Wire |
| Insulation Material | High-purity Magnesium Oxide Powder (MgO) |
| Sheath Surface Temperature | ≤850°C |
| Connection Type | Threaded / Flanged / Terminal Lead Type |
| Surface Treatment | Polished / Passivated (Optional) |
| Service Life | ≥10,000 hours under rated conditions |
● Efficient Heating: Double-ended design allows fast, uniform temperature rise.
● Reliable Construction: High-strength materials ensure durability and safety under continuous heating.
● Corrosion & Oxidation Resistant: Suitable for various liquids and industrial environments.
● Customizable Design: Voltage, power, size, and terminal type can be customized.
● Stable Performance: Excellent insulation, vibration resistance, and heat conduction.
● Easy Installation: Compact structure fits different heating equipment configurations.
● Water and oil heating equipment
● Industrial heaters and boilers
● Mold and die heating systems
● Air heating and drying machines
● Food processing and packaging machinery
● Laboratory and chemical heating devices
