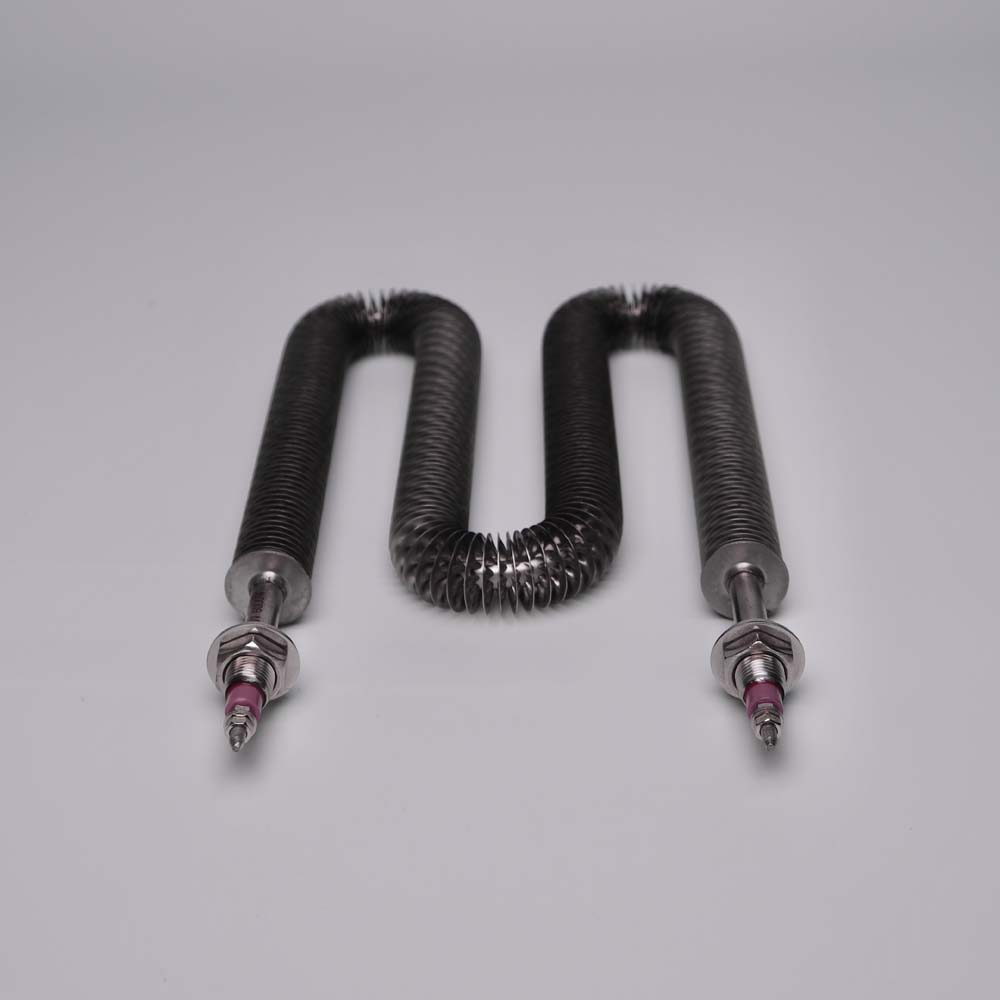

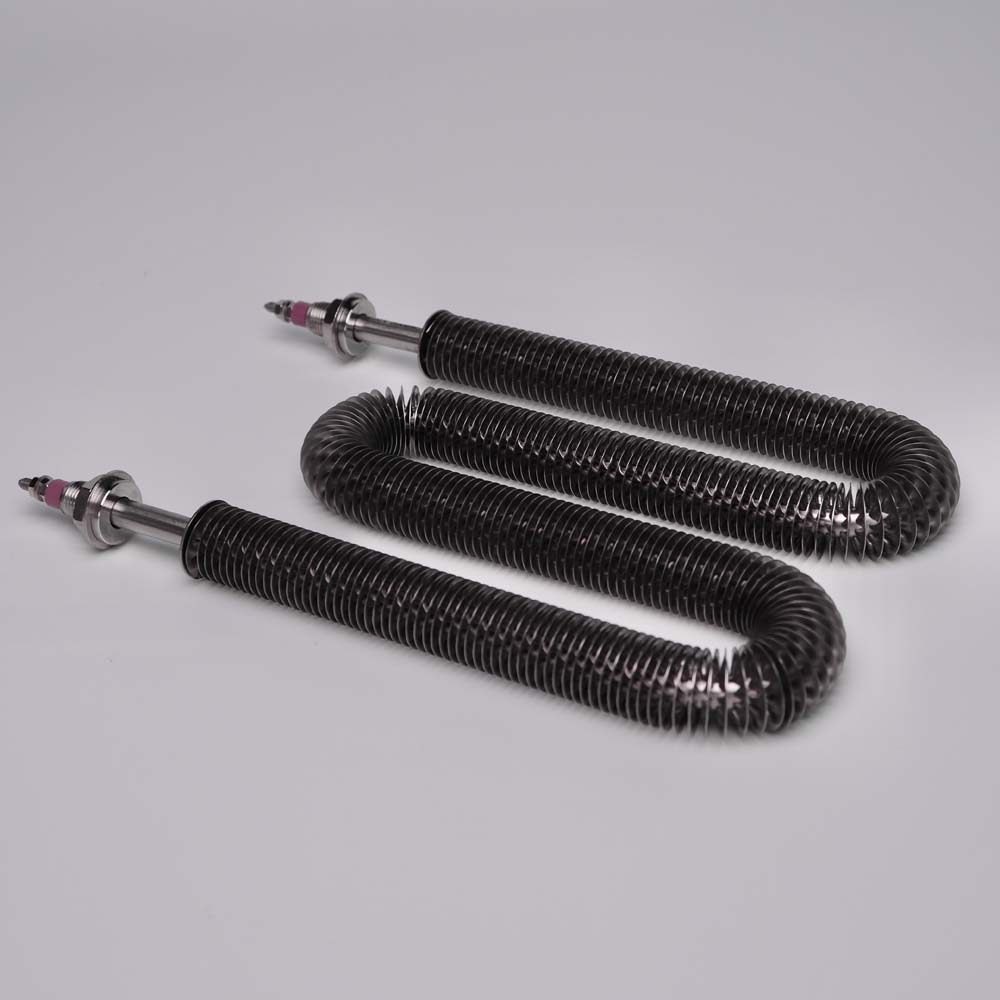

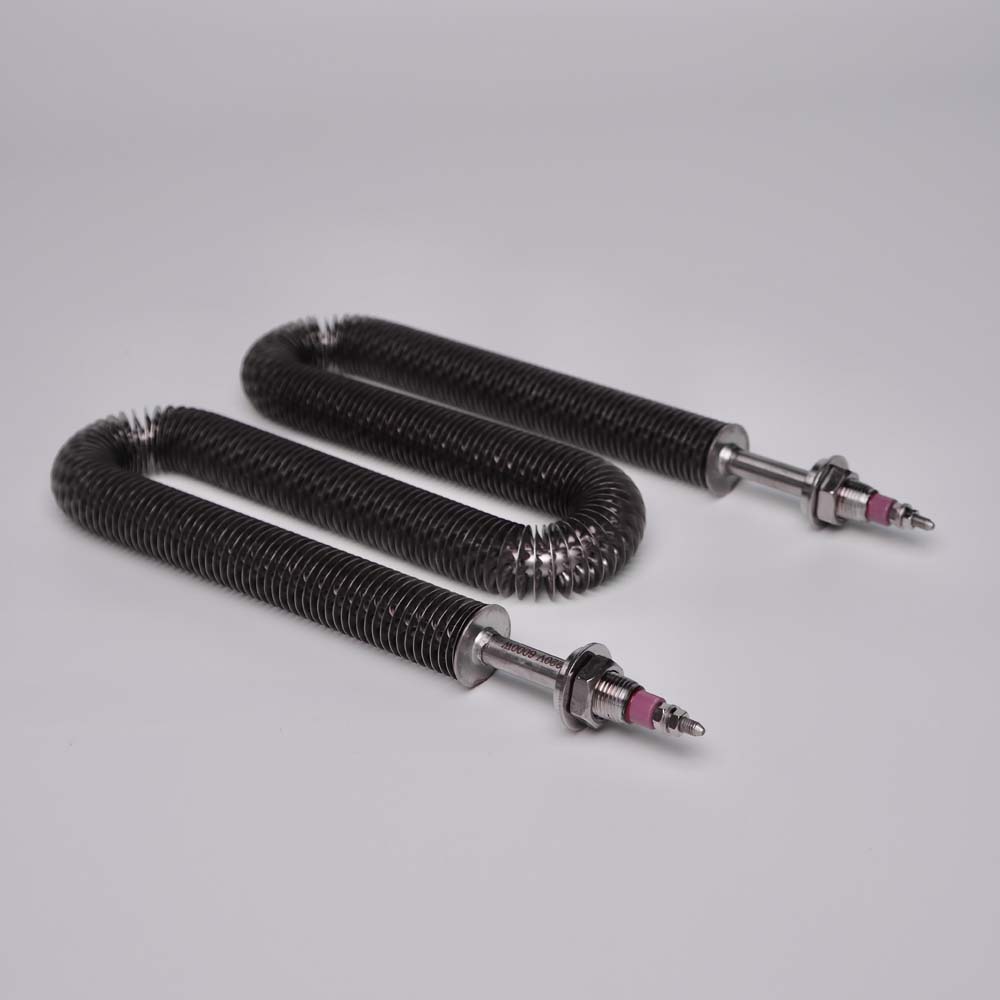

The U-shaped finned stainless steel heating tube with fish-fin radiator fins is designed for efficient heat transfer, compact installation, and long-term durability.
Its unique fish-fin style fins greatly increase the heat dissipation surface area, resulting in faster heating and improved thermal efficiency when heating air, gases, or solid components.
The U-shaped structure provides uniform heat distribution and convenient mounting, making it ideal for space-limited heating systems.
Inside the tube, electric current flows through a high-resistance Ni–Cr wire, generating heat that is conducted through high-purity magnesium oxide insulation powder to the stainless steel sheath and external fins.
This structure ensures rapid, even heating and superior mechanical strength under continuous operation.
| Item | Specification |
| Material | Stainless Steel / Copper / Nickel-Iron-Chromium Alloy |
| Fin Type | Fish-Fin Radiator Fins |
| Tube Diameter | Φ6–20mm |
| Fin Material | Aluminum / Stainless Steel |
| Fin Pitch | 3–5mm (Customizable) |
| Heating Length | 200–3000mm (Customizable) |
| Rated Voltage | 12V–480V |
| Power Range | 100W–20kW |
| Heating Wire | Ni-Cr Resistance Wire |
| Insulation Material | High-purity Magnesium Oxide Powder (MgO) |
| Sheath Surface Temperature | ≤850°C |
| Installation Type | U-shaped Mounting or Custom Configuration |
| Service Life | ≥10,000 hours under rated conditions |
| Surface Treatment | Polished / Passivated (optional) |
● High Heat Dissipation: Fish-fin style fins increase surface area for efficient air or gas heating.
● Durable Construction: Made from high-quality stainless steel for excellent corrosion and oxidation resistance.
● Fast Heating: Superior thermal conductivity and uniform temperature distribution.
● Long Service Life: Designed for continuous industrial operation with stable performance.
● Customizable: Voltage, power, size, fin type, and mounting options available upon request.
● Compact Design: U-shaped configuration allows flexible installation in confined spaces.
● Industrial drying and baking ovens
● Air heating systems and duct heaters
● Food processing and dehydration equipment
● Plastic and rubber machinery heating
● HVAC and dehumidification systems
● Industrial equipment requiring high-efficiency air heating
