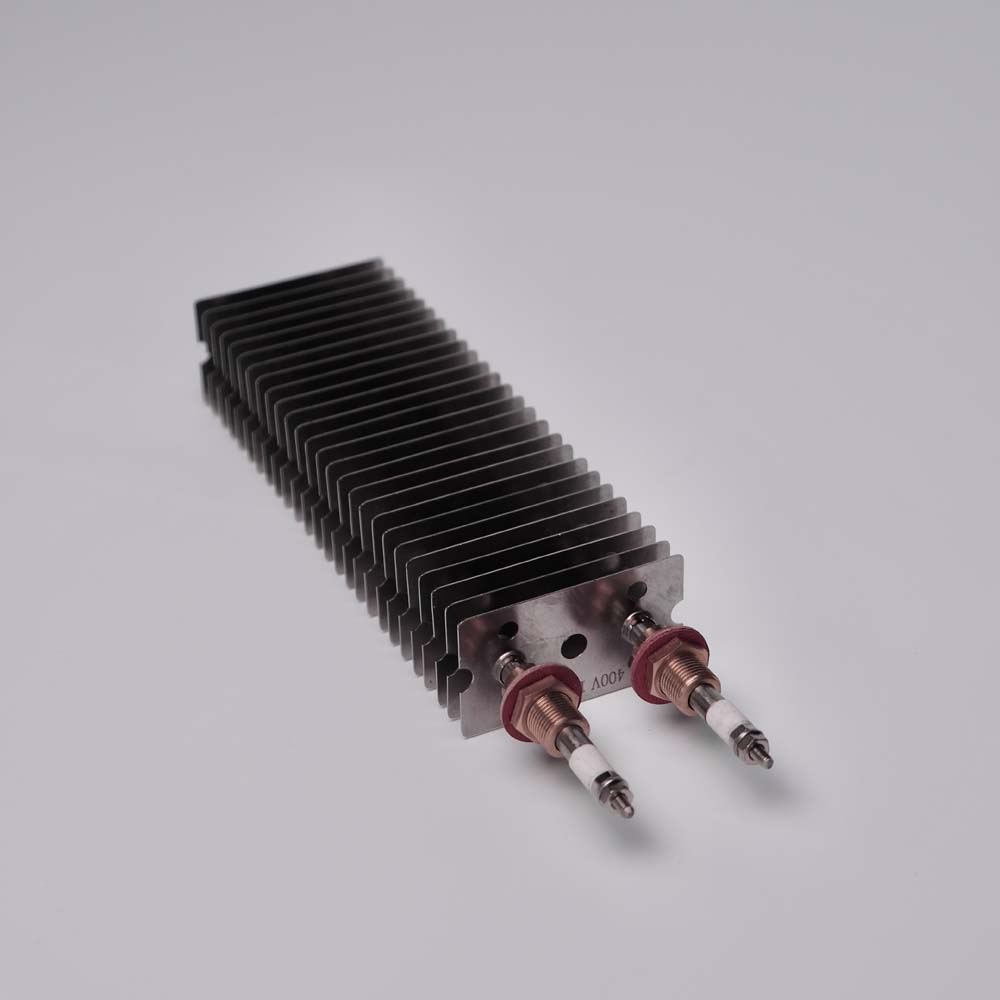

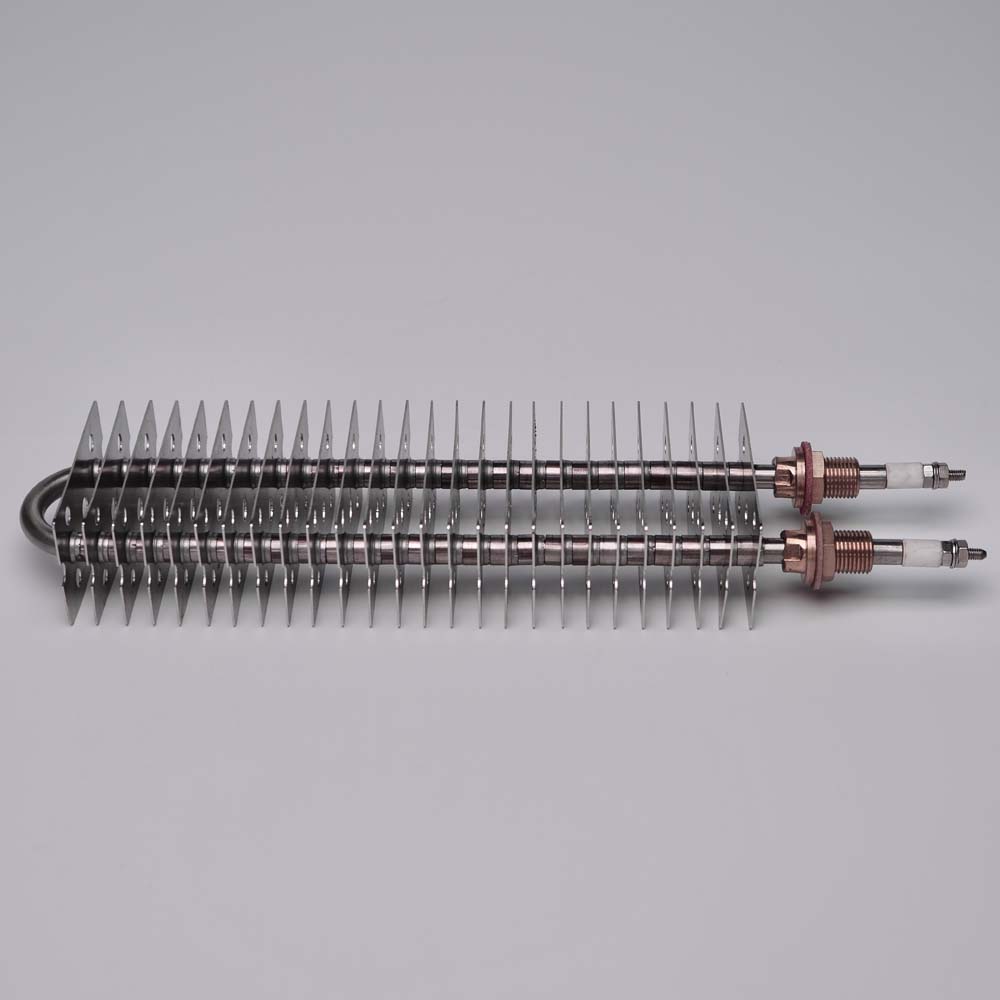

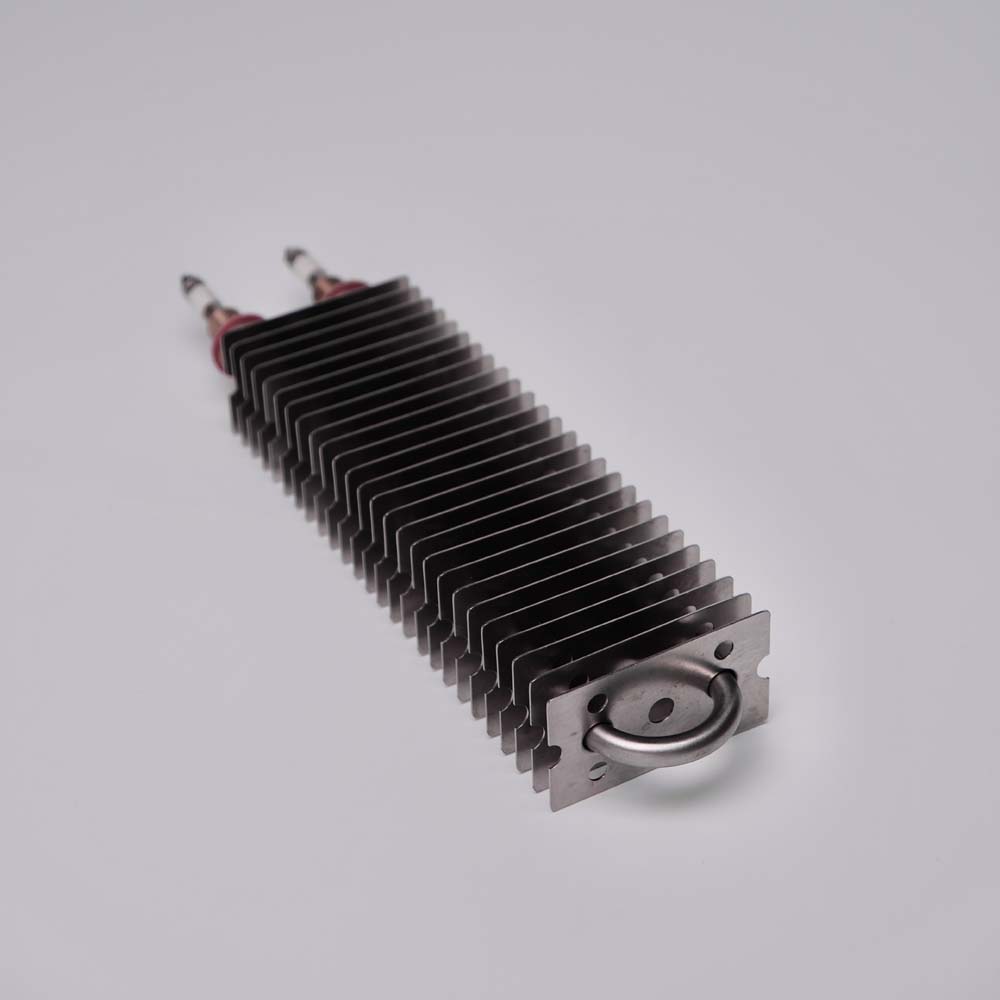

The square finned heating tube is designed for efficient air and gas heating applications requiring high thermal output and compact installation.
The square fin structure provides a larger heat dissipation surface compared to traditional round-finned elements, allowing faster heat transfer, higher efficiency, and uniform temperature distribution.
The heating tube is constructed with a high-quality stainless steel, copper, or nickel–iron–chromium alloy sheath, filled with high-purity magnesium oxide insulation powder for excellent thermal conductivity and electrical insulation.
The square fins are mechanically bonded to the sheath, ensuring maximum heat exchange and long-term durability even under continuous operation.
This design is widely used in air heaters, drying ovens, dehumidifiers, and industrial heating systems that require stable, efficient heat performance.
| Item | Specification |
| Material | Stainless Steel / Copper / Nickel-Iron-Chromium Alloy |
| Fin Type | Square Fins |
| Fin Material | Aluminum / Stainless Steel |
| Tube Diameter | Φ6–20mm |
| Fin Pitch | 3–6mm (Customizable) |
| Heating Length | 200–3000mm (Customizable) |
| Rated Voltage | 12V–480V |
| Power Range | 100W–20kW |
| Heating Wire | Ni-Cr Resistance Wire |
| Insulation Material | High-purity Magnesium Oxide Powder (MgO) |
| Sheath Surface Temperature | ≤850°C |
| Installation Type | Straight / U-shaped / Custom Configuration |
| Surface Treatment | Polished / Passivated (Optional) |
| Service Life | ≥10,000 hours under rated conditions |
● High Thermal Efficiency: Square fins enlarge the heat transfer surface, providing faster and more uniform heating.
● Durable Structure: High-quality stainless steel or nickel–iron–chromium alloy for corrosion and oxidation resistance.
● Stable Performance: Excellent mechanical strength, vibration, and impact resistance.
● Energy Saving: Enhanced heat dissipation reduces energy consumption.
● Customizable Design: Voltage, power, fin size, and shape can be customized upon request.
● Long Service Life: Reliable performance under continuous operation.
● Industrial drying and air heating systems
● Ovens, duct heaters, and air preheating units
● Food processing and baking equipment
● Dehumidification and ventilation systems
● HVAC and environmental control equipment
● Machinery requiring compact, high-efficiency heating
