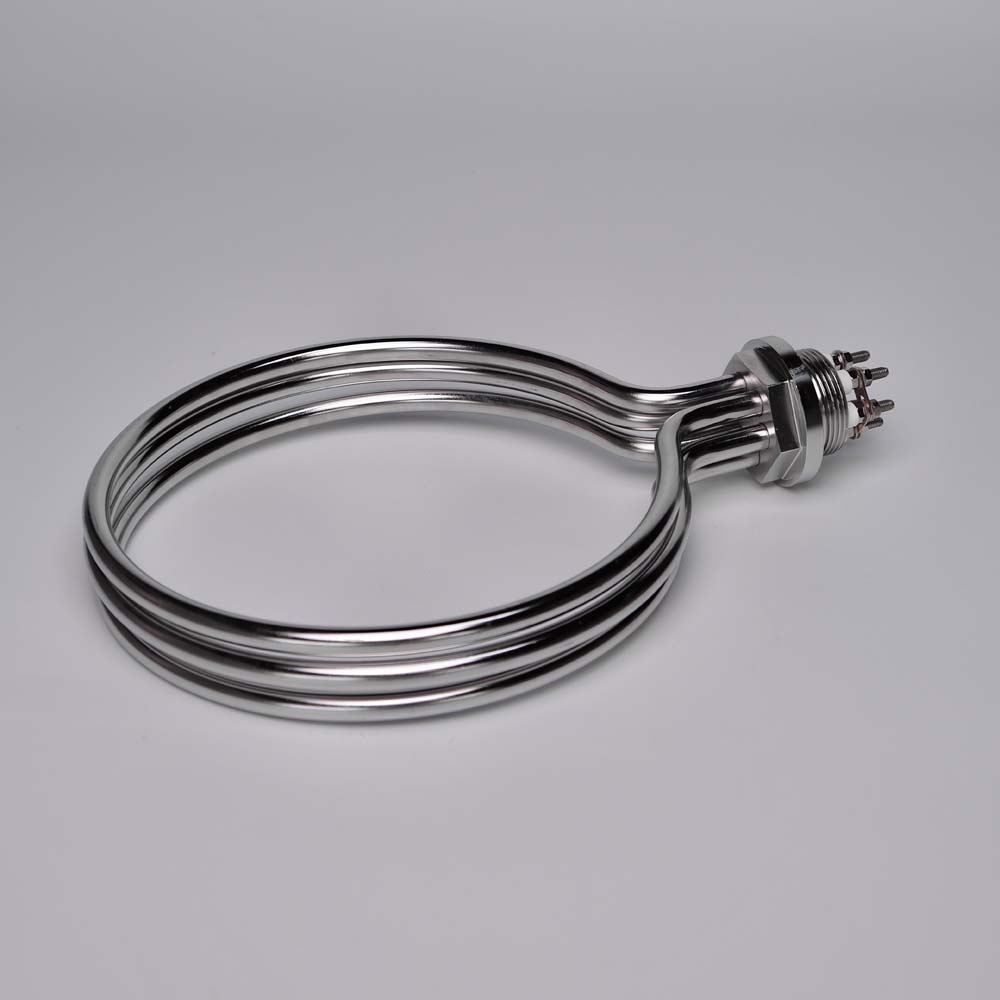

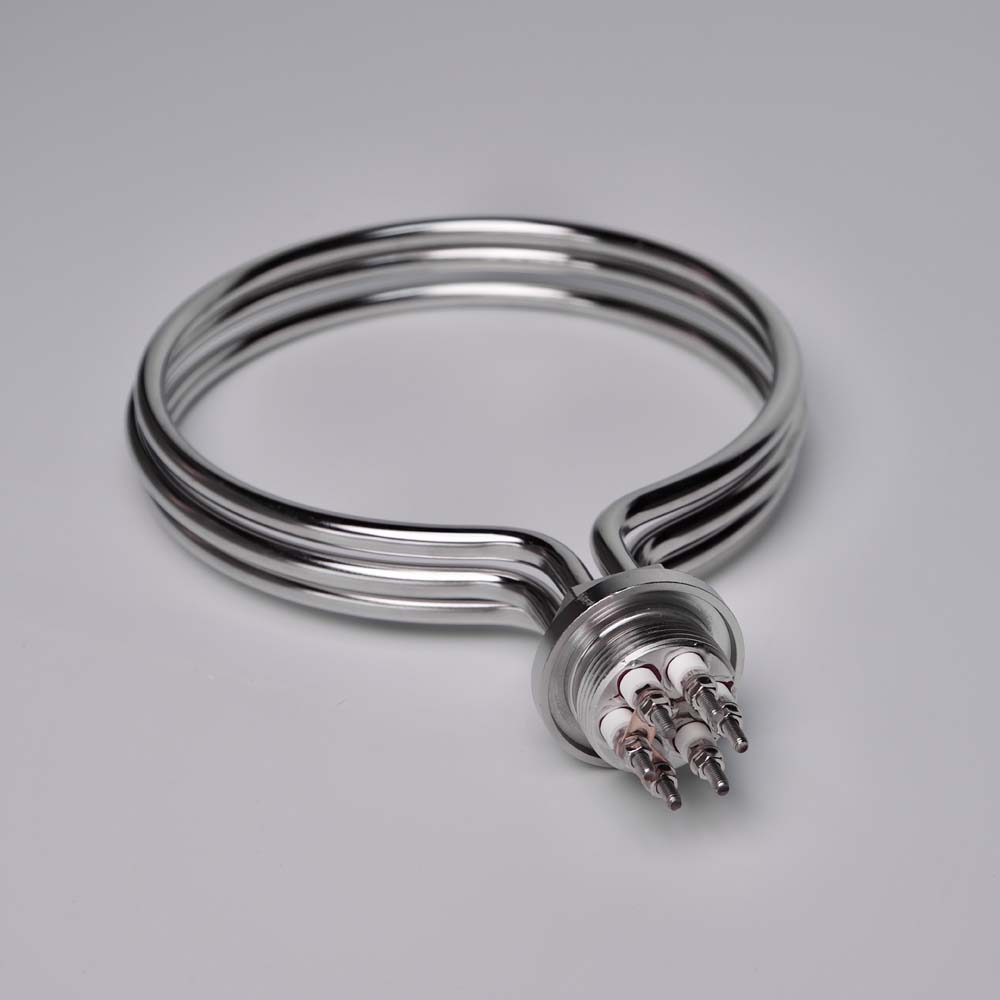

The triple-coil heating element is designed with a three-ring coiled structure that provides compact installation, uniform heating, and enhanced heat transfer efficiency.
By coiling the heating tube into three concentric loops, the effective heating surface area increases significantly, allowing for rapid temperature rise and stable heat output in liquid or air heating applications.
The element consists of a high-resistance Ni–Cr heating wire embedded in high-purity magnesium oxide (MgO) powder, enclosed within a stainless steel, copper, or nickel–iron–chromium alloy sheath for excellent thermal conductivity and insulation performance.
This robust design ensures long service life, efficient energy conversion, and reliable operation under high-temperature or continuous-use conditions.
It is widely applied in water heaters, oil tanks, air heaters, and industrial heating systems requiring compact, high-efficiency heating performance.
| Item | Specification |
| Material | Stainless Steel / Copper / Nickel-Iron-Chromium Alloy |
| Structure Type | Triple-Coil (Three-Ring) Design |
| Tube Diameter | Φ6–20mm |
| Heating Length | 200–4000mm (Customizable) |
| Rated Voltage | 12V–480V |
| Power Range | 200W–30kW |
| Heating Wire | Ni-Cr Resistance Wire |
| Insulation Material | High-purity Magnesium Oxide Powder (MgO) |
| Sheath Surface Temperature | ≤800°C |
| Installation Type | Threaded / Flanged / Insert Type |
| Surface Treatment | Polished / Passivated (Optional) |
| Service Life | ≥10,000 hours under rated conditions |
● Compact Design: Triple-coil configuration offers high power density and efficient space utilization.
● Uniform Heating: Even heat distribution across all coil sections for stable performance.
● Durable Construction: Made from stainless steel or nickel–iron–chromium alloy for high corrosion and oxidation resistance.
● Energy Efficient: Enhanced heat transfer reduces power loss and improves heating speed.
● Customizable: Voltage, power, coil diameter, and mounting options available upon request.
● Long Service Life: Designed for continuous industrial operation with consistent heating output.
l Water and oil heating equipment
l Electric boilers and immersion heaters
l Air and gas heating systems
l Food processing and drying machinery
l Chemical and laboratory heating devices
l Industrial process tanks and fluid heaters
