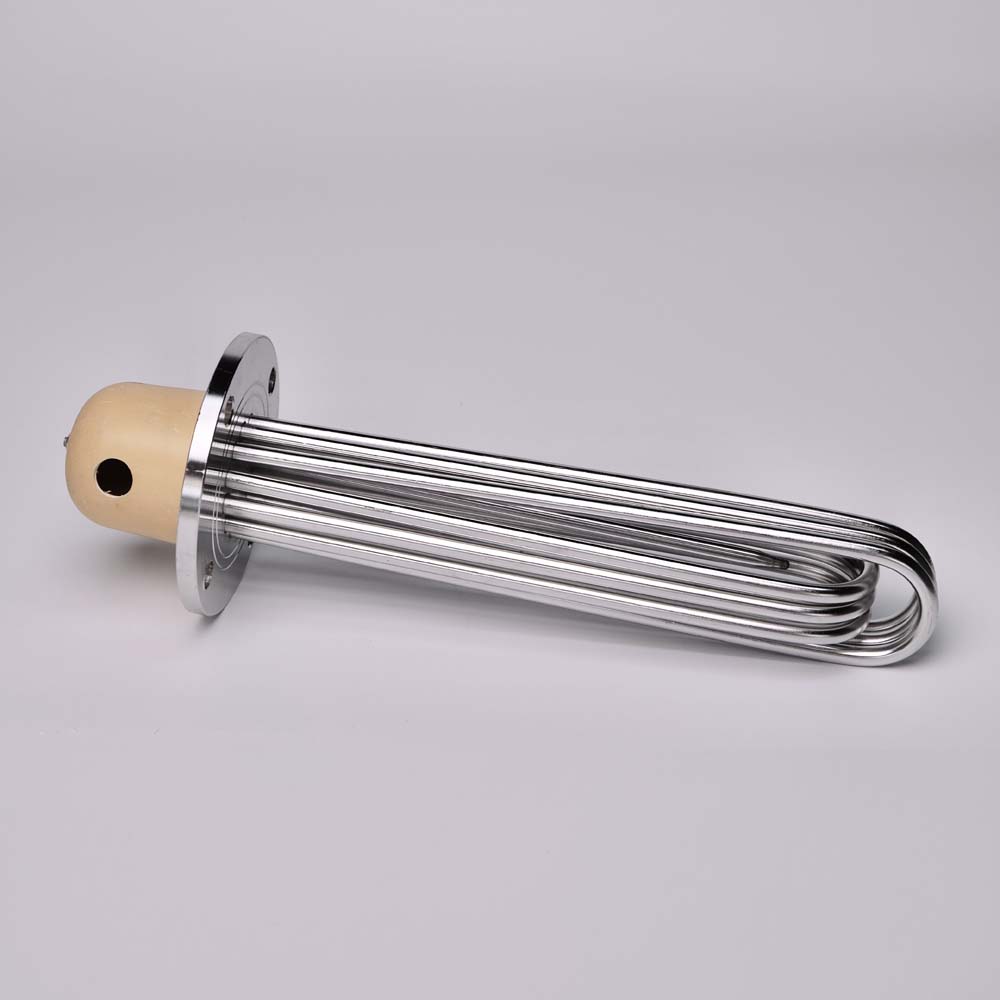

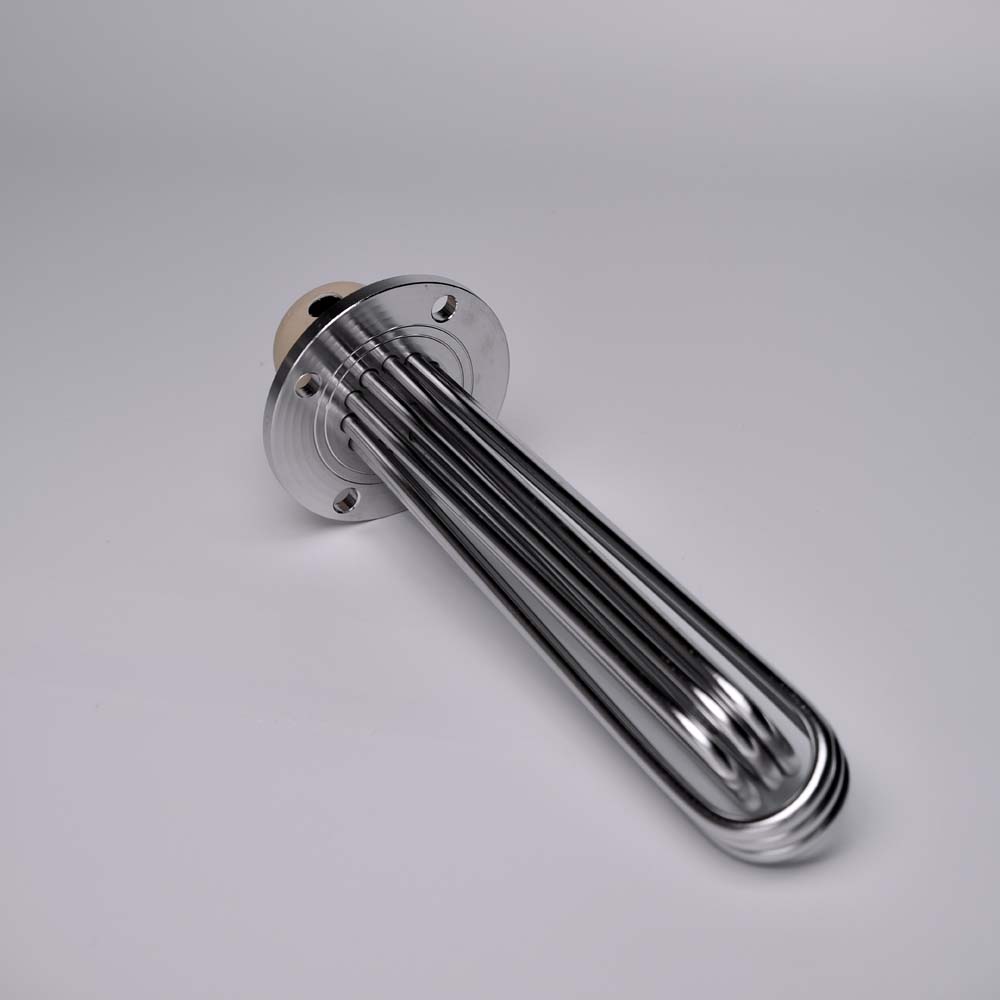

The explosion-proof flanged immersion heater is specifically designed for safe and efficient heating in hazardous environments where flammable gases, vapors, or liquids may be present.
It integrates a robust flange connection with explosion-proof junction housing, ensuring secure installation and reliable electrical insulation.
When current passes through the resistance wire, the generated heat is conducted through high-purity magnesium oxide insulation powder to the metal sheath surface, then transferred efficiently to the medium—such as water, oil, or chemical solutions.
Constructed with high-quality stainless steel, copper, or nickel–iron–chromium alloy sheath, the heater provides excellent corrosion resistance and long-term durability even under harsh industrial conditions.
This design ensures stable performance, quick heat transfer, and enhanced safety protection, making it ideal for industrial tanks, pipelines, and fluid heating systems in explosive environments.
| Item | Specification |
| Material | Stainless Steel / Copper / Nickel-base-Chromium alloy (Customizable) |
| Flange Material | Carbon Steel / Stainless Steel |
| Tube Diameter | Φ8–30mm |
| Heating Length | 200–6000mm (Customizable) |
| Rated Voltage | 220V / 380V (Customizable) |
| Power Range | 0.5–60KW (Customizable) |
| Heating Wire | Ni-Cr resistance wire |
| Insulation Material | High-purity Magnesium Oxide Powder (MgO) |
| Explosion-Proof Grade | Ex d IIB T1–T6 |
| Temperature Range | Up to 850°C |
| Protection Level | IP65 / IP66 |
| Installation Method | Flanged Immersion Type |
| Surface Treatment | Polished or Oxidized Finish (Optional) |
| Service Life | ≥10,000 hours under rated conditions |
● Explosion-Proof Design: Certified housing and terminal assembly ensure safe operation in hazardous zones.
● High Efficiency: Rapid heating and excellent thermal transfer to liquid media.
● Corrosion Resistance: Suitable for water, oil, and chemical fluids.
● Durable Construction: Stainless steel or nickel–iron–chromium alloy for extended service life.
● Easy Installation: Standard or customized flange connection for secure mounting.
● Customizable: Voltage, power, flange size, and sheath material available upon request.
● Chemical and petrochemical process heating
● Oil tanks, storage vessels, and industrial pipelines
● Water and liquid heating systems in explosive atmospheres
● Gas stations, refineries, and offshore platforms
● Industrial drying and dehumidification systems
● Process heating requiring explosion-proof protection
