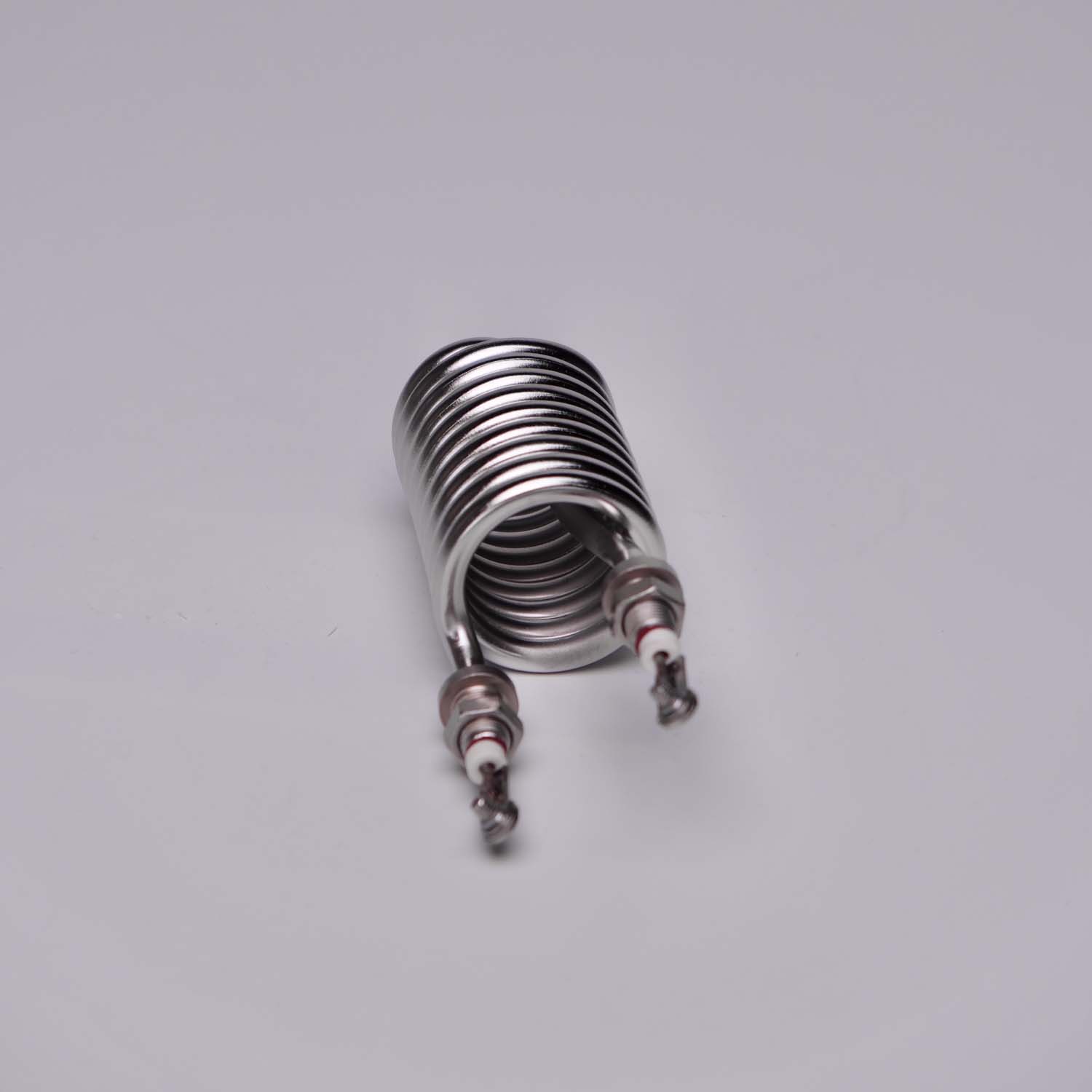

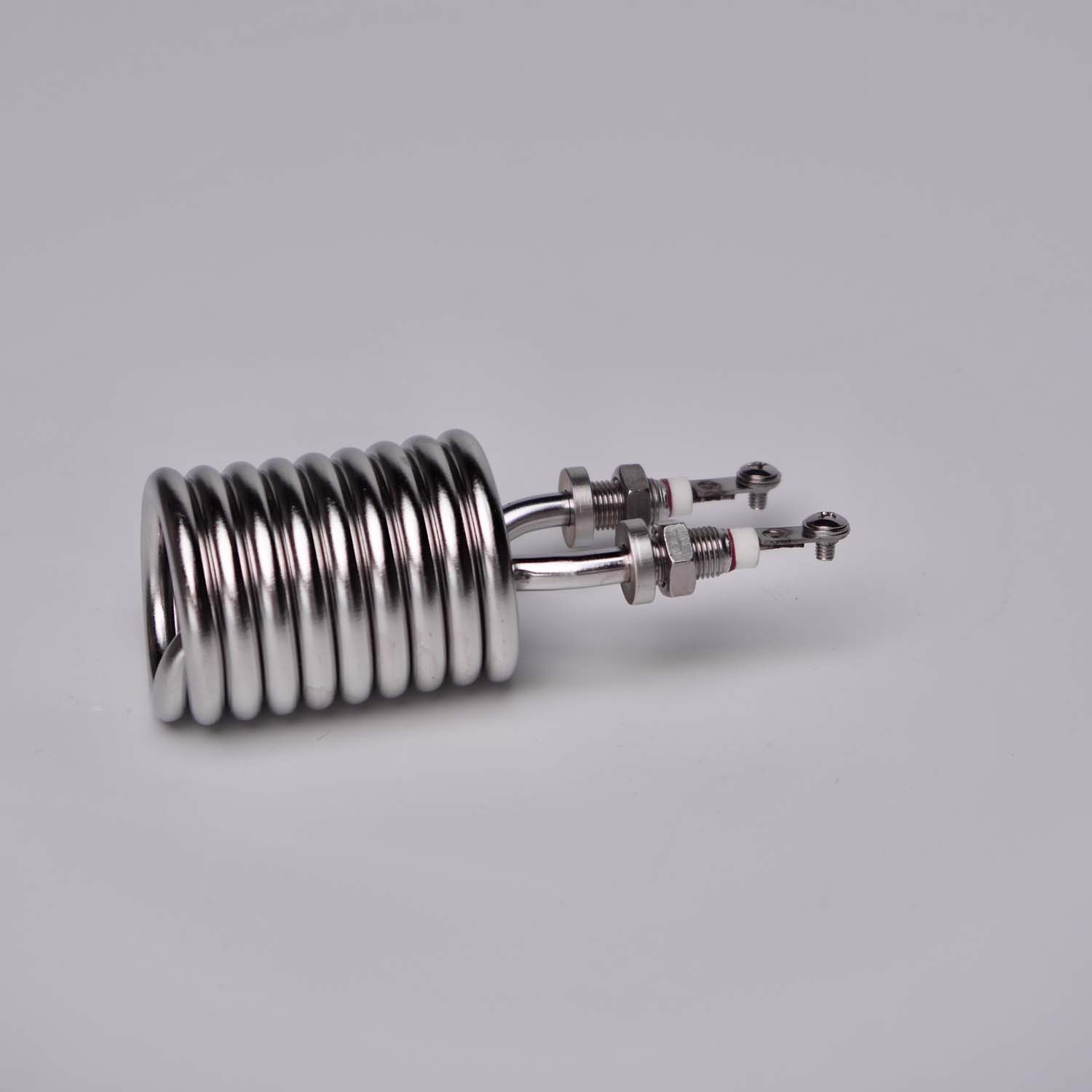

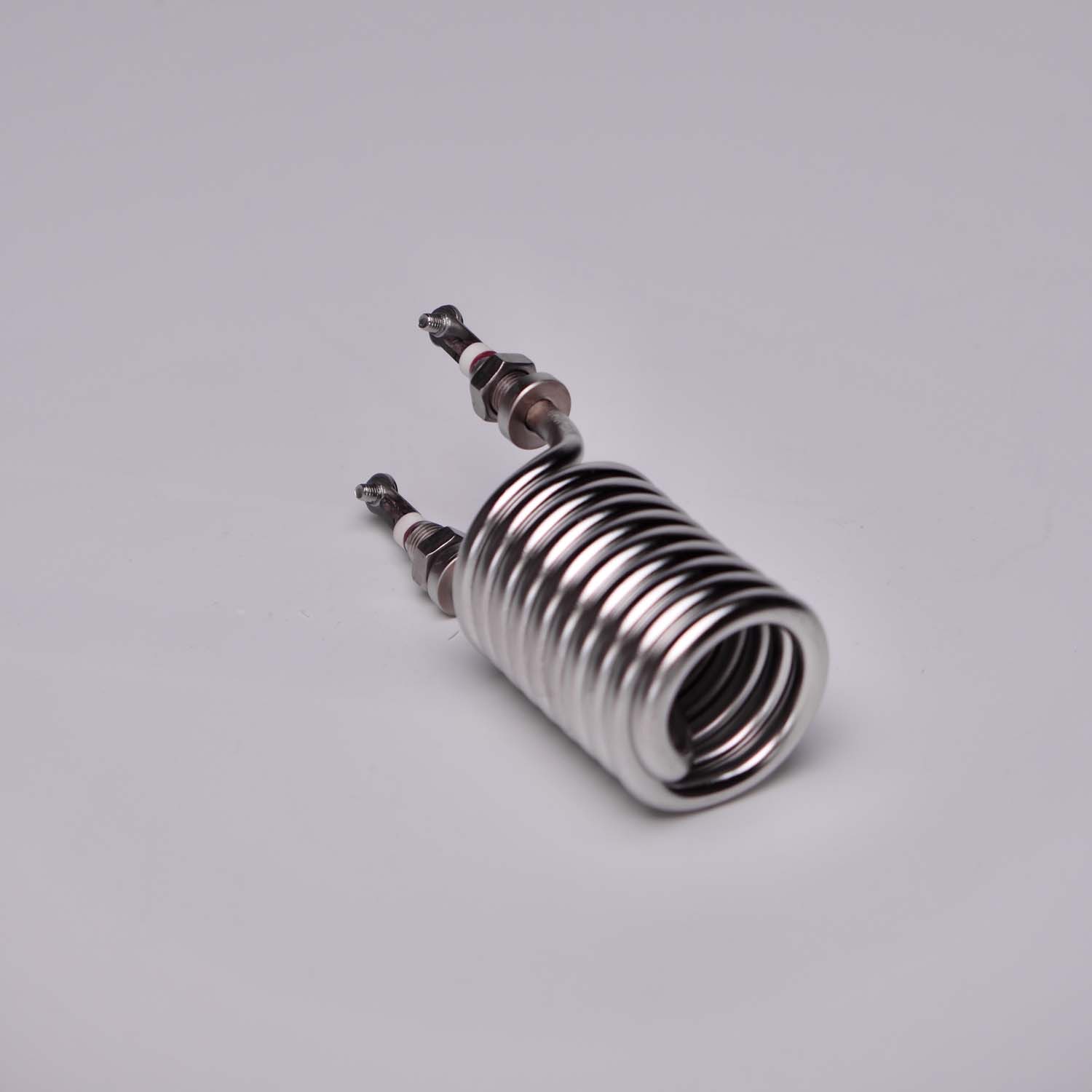

The helical heating element is designed with a spiral coil structure that provides excellent heat transfer, compact size, and uniform temperature distribution.
Its helical configuration allows for increased surface area and improved heat exchange, making it ideal for applications that require high heating efficiency in limited space, such as water tanks, oil heaters, and air heating systems.
Inside the tube, a high-resistance Ni–Cr heating wire is precisely wound and insulated with high-purity magnesium oxide powder. The generated heat is rapidly conducted to the stainless steel, copper, or nickel–iron–chromium alloy sheath, ensuring efficient and reliable operation even under high-temperature or continuous-use conditions.
The spiral structure also enhances mechanical strength and vibration resistance, ensuring long service life and stable performance in demanding industrial environments.
| Item | Specification |
| Material | Stainless Steel / Copper / Nickel-Iron-Chromium Alloy |
| Structure Type | Helical / Spiral Coil Design |
| Tube Diameter | Φ6–20mm |
| Coil Diameter | Φ30–120mm (Customizable) |
| Heating Length | 200–4000mm (Customizable) |
| Rated Voltage | 12V–480V |
| Power Range | 200W–30kW |
| Heating Wire | Ni-Cr Resistance Wire |
| Insulation Material | High-purity Magnesium Oxide Powder (MgO) |
| Sheath Surface Temperature | ≤800°C |
| Installation Type | Threaded / Flanged / Insert Type |
| Surface Treatment | Polished / Passivated (Optional) |
| Service Life | ≥10,000 hours under rated conditions |
● Compact and Efficient Design: Helical structure increases heat transfer surface area and efficiency.
● Uniform Heating: Ensures even temperature distribution throughout the heating zone.
● Durable Materials: Made with stainless steel or nickel–iron–chromium alloy for corrosion and oxidation resistance.
● Strong Mechanical Performance: Excellent vibration resistance and structural stability.
● Energy Saving: Enhanced thermal efficiency reduces energy consumption.
● Customizable: Voltage, power, coil size, and mounting type can be customized upon request.
● Water and oil heating systems
● Air heaters and drying equipment
● Industrial boilers and process tanks
● Food processing and packaging machinery
● Mold and die heating systems
● Laboratory and chemical heating devices
