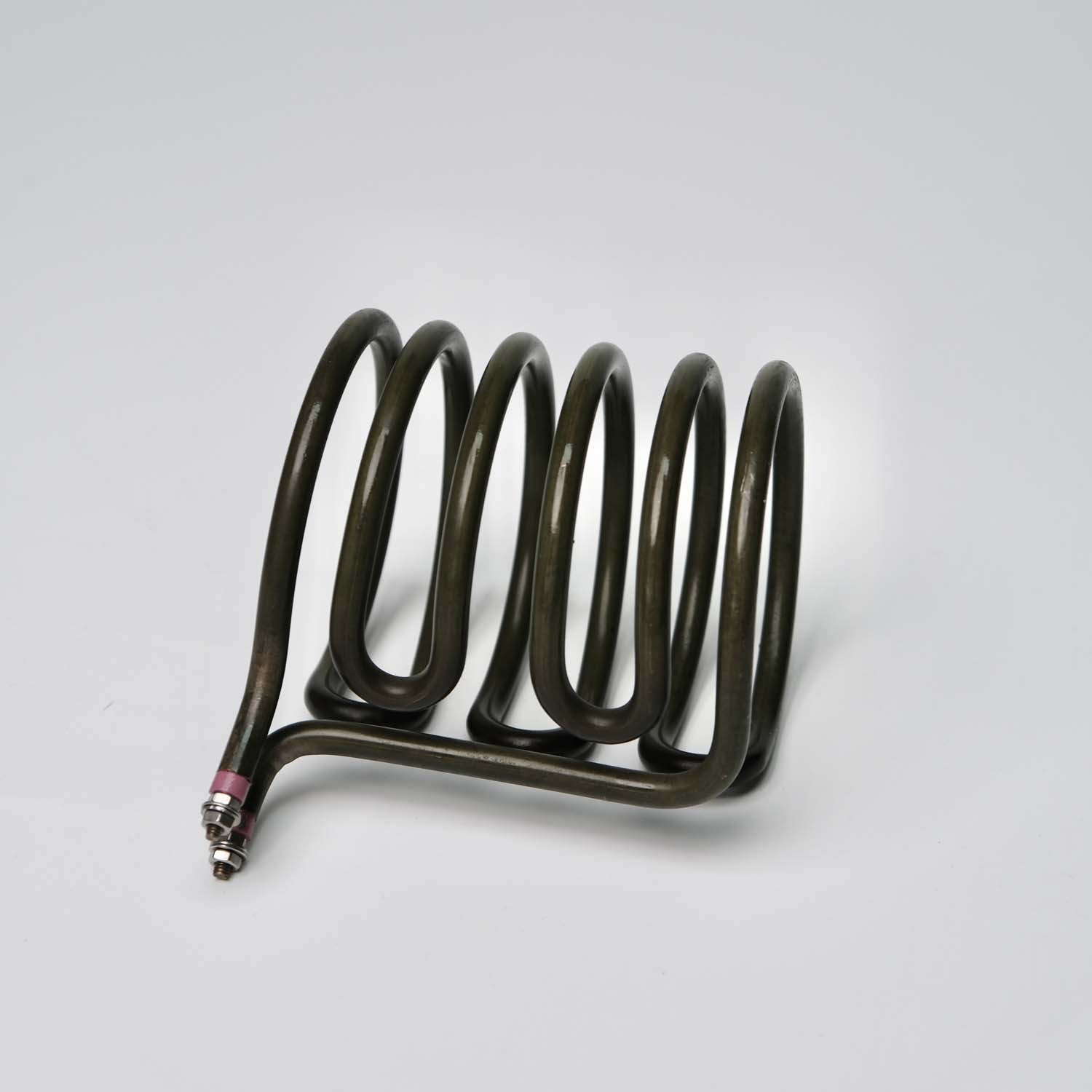

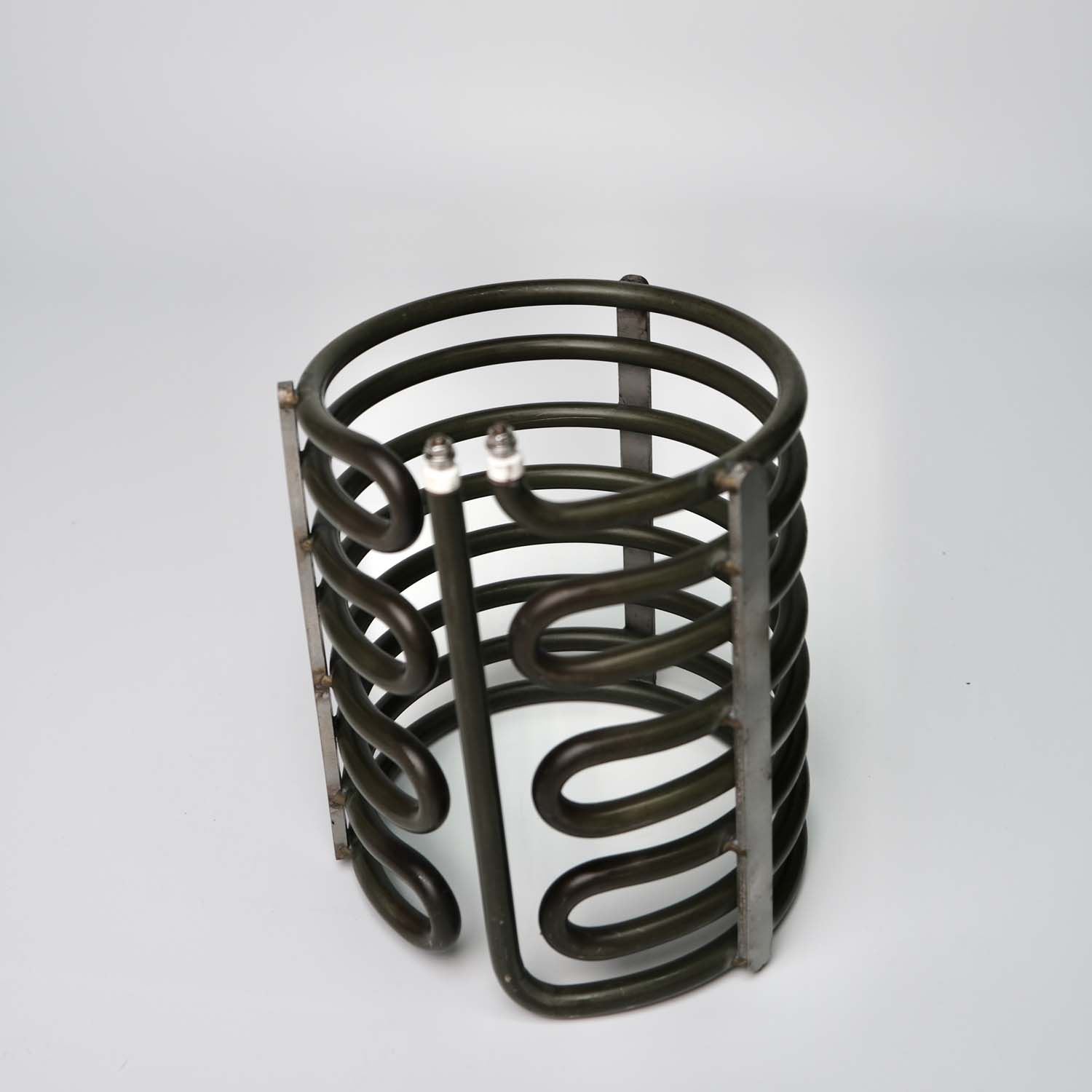

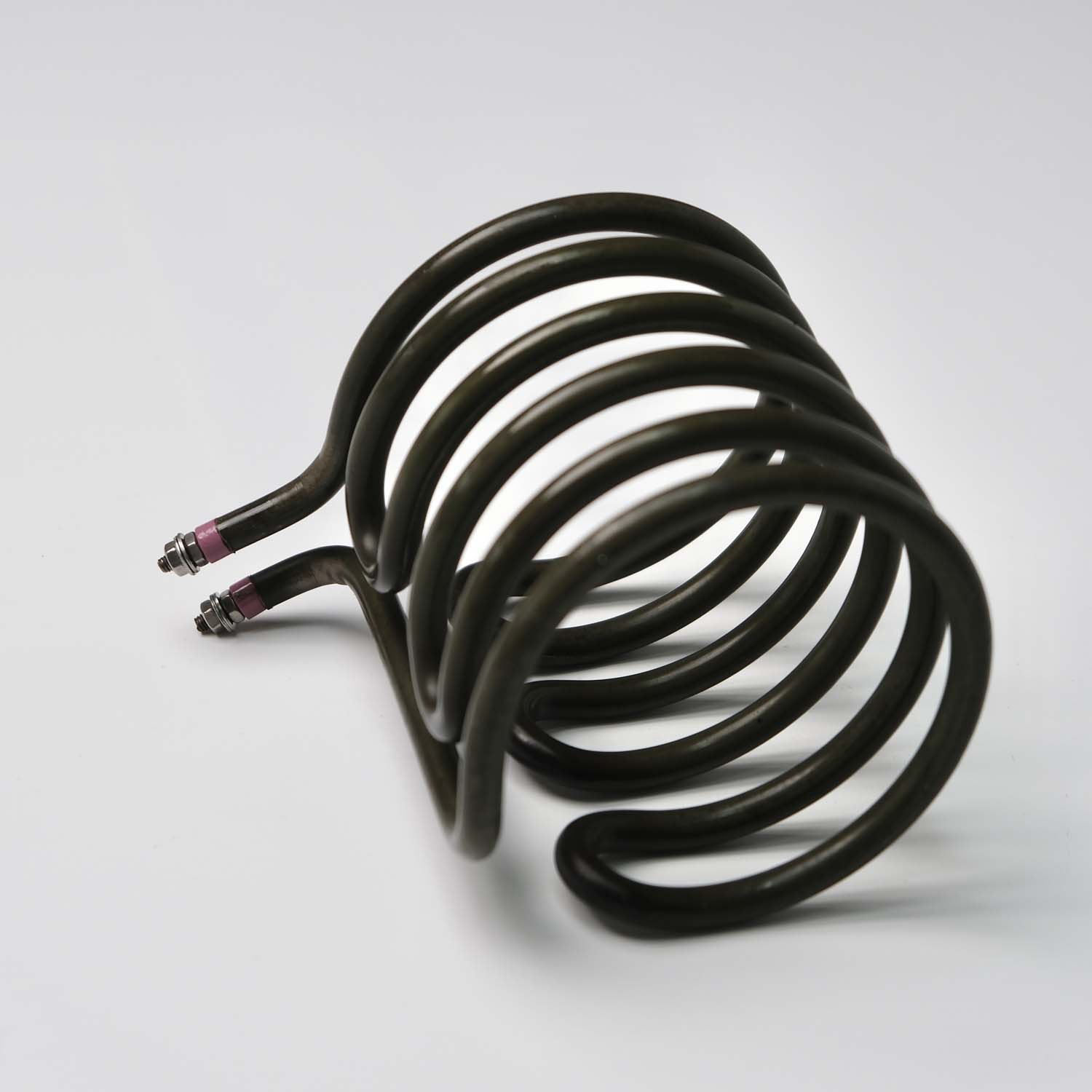

The M-shaped heating element is designed with a compact M-shaped configuration, providing excellent heat transfer, space efficiency, and uniform temperature distribution.
This design allows for efficient installation in limited spaces, making it ideal for heating air, liquids, and metal surfaces in industrial or household equipment.
Inside the tube, a Ni–Cr resistance wire generates heat, which is conducted through high-purity magnesium oxide Nickel–Iron–Chromium Alloy insulation powder to the stainless steel, copper, or nickel–iron–chromium alloy sheath.
The heat is then evenly distributed to the surrounding medium, ensuring rapid heating, energy efficiency, and long service life even under continuous high-temperature operation.
| Item | Specification |
| Material | Stainless Steel / Copper / Nickel-Iron-Chromium Alloy |
| Structure Type | M-Shaped Heating Tube |
| Tube Diameter | Φ6–16mm |
| Heating Length | 150–2500mm (Customizable) |
| Rated Voltage | 110V–480V |
| Power Range | 100W–10kW |
| Heating Wire | Ni-Cr Resistance Wire |
| Insulation Material | High-Purity Magnesium Oxide (MgO) |
| Sheath Surface Temperature | ≤850°C |
| Installation Type | Threaded / Flanged / Embedded / Fixed Plate |
| Surface Treatment | Polished / Passivated / Anti-Oxidation |
| Service Life | ≥10,000 hours under rated conditions |
● Compact and Efficient: M-shaped design saves space while providing high heat transfer efficiency.
● Uniform Heating: Even heat distribution ensures stable temperature performance.
● Durable Construction: Made with corrosion- and oxidation-resistant materials for long service life.
● Easy Installation: Suitable for flat or curved mounting surfaces.
● Energy Saving: High thermal conductivity reduces energy loss and improves heating response.
● Customizable: Voltage, power, length, and mounting method can be tailored to specific requirements.
● Industrial and commercial ovens
● Air and duct heaters
● Food processing and drying equipment
● Water and oil heating systems
● Mold and tank heating applications
● Laboratory and testing equipment
