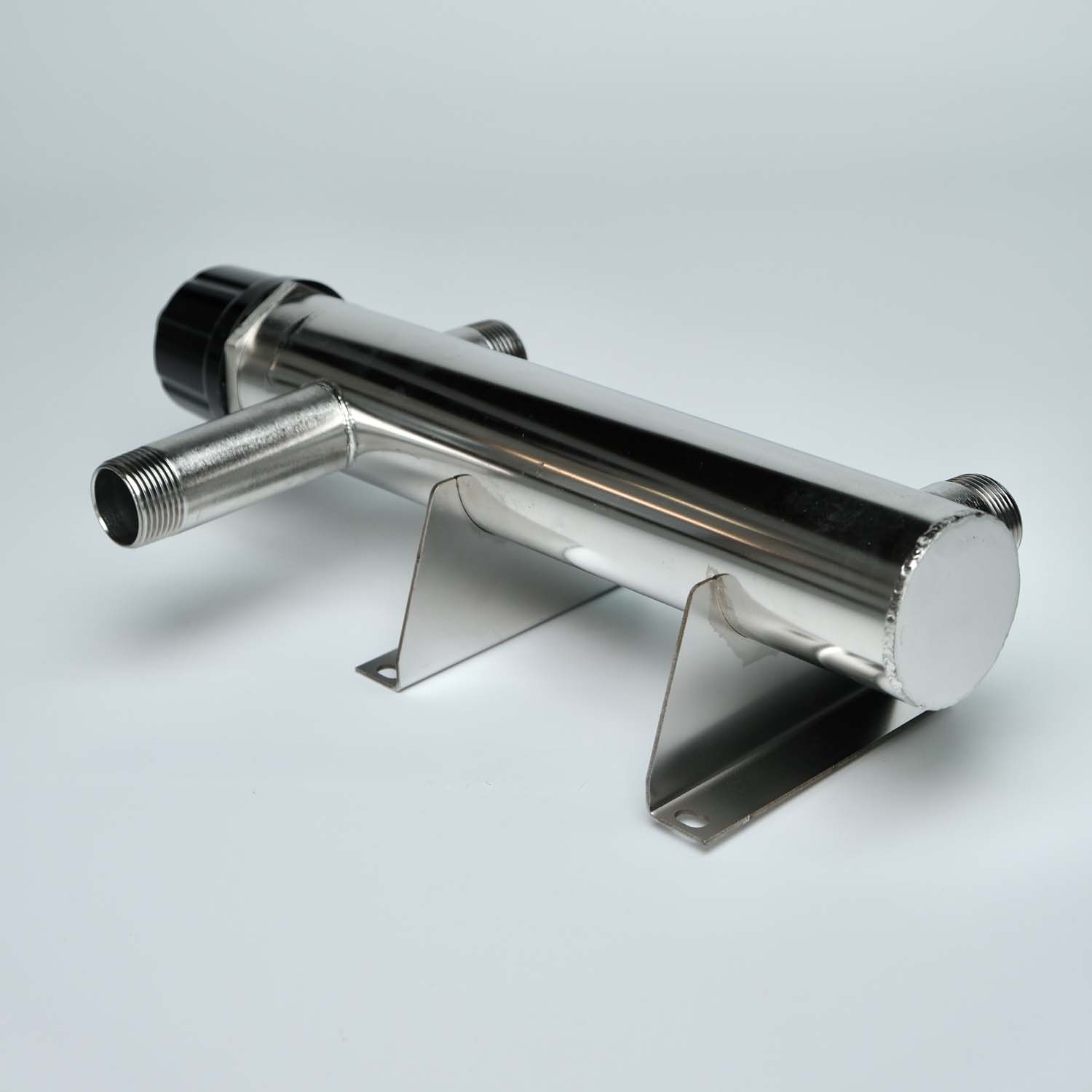

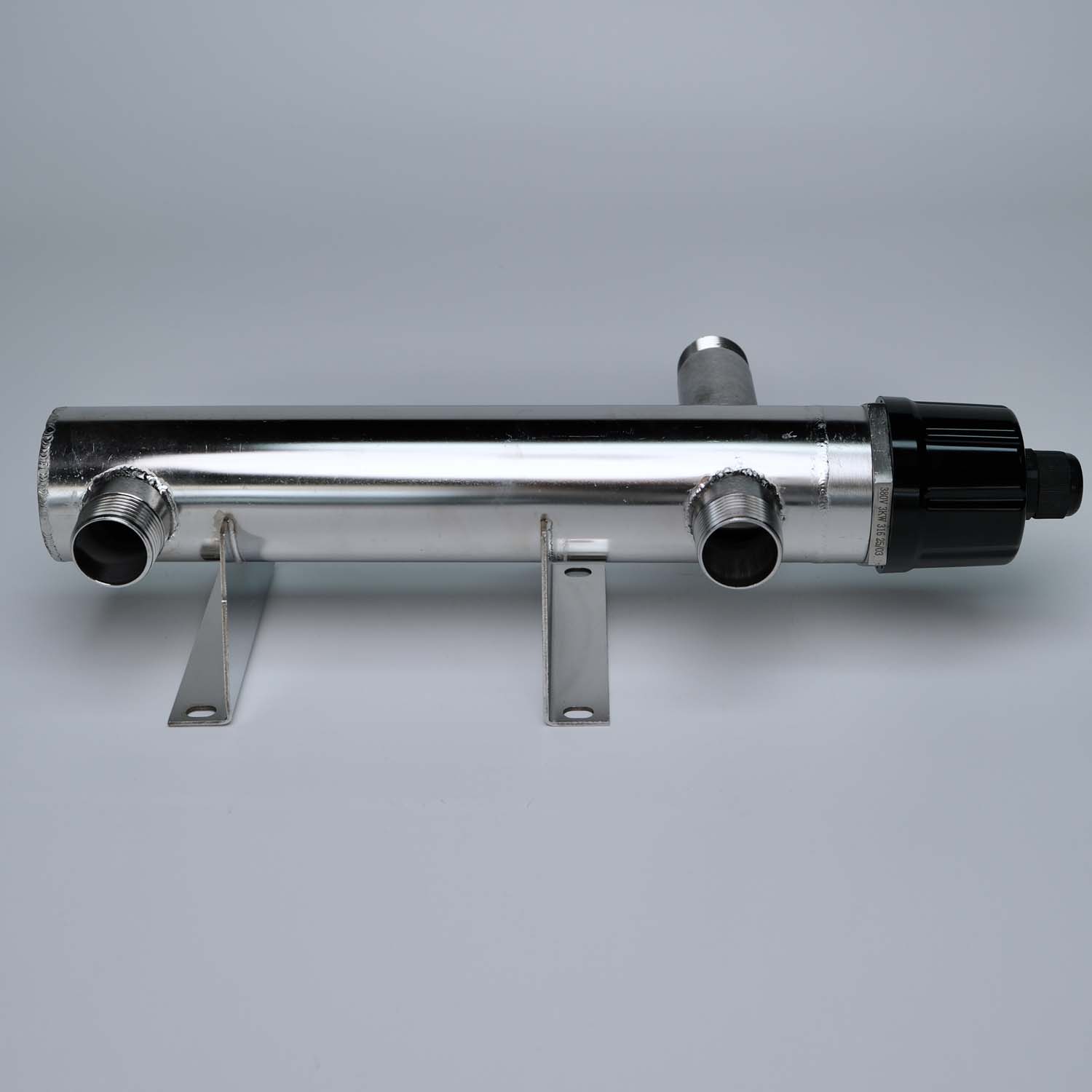

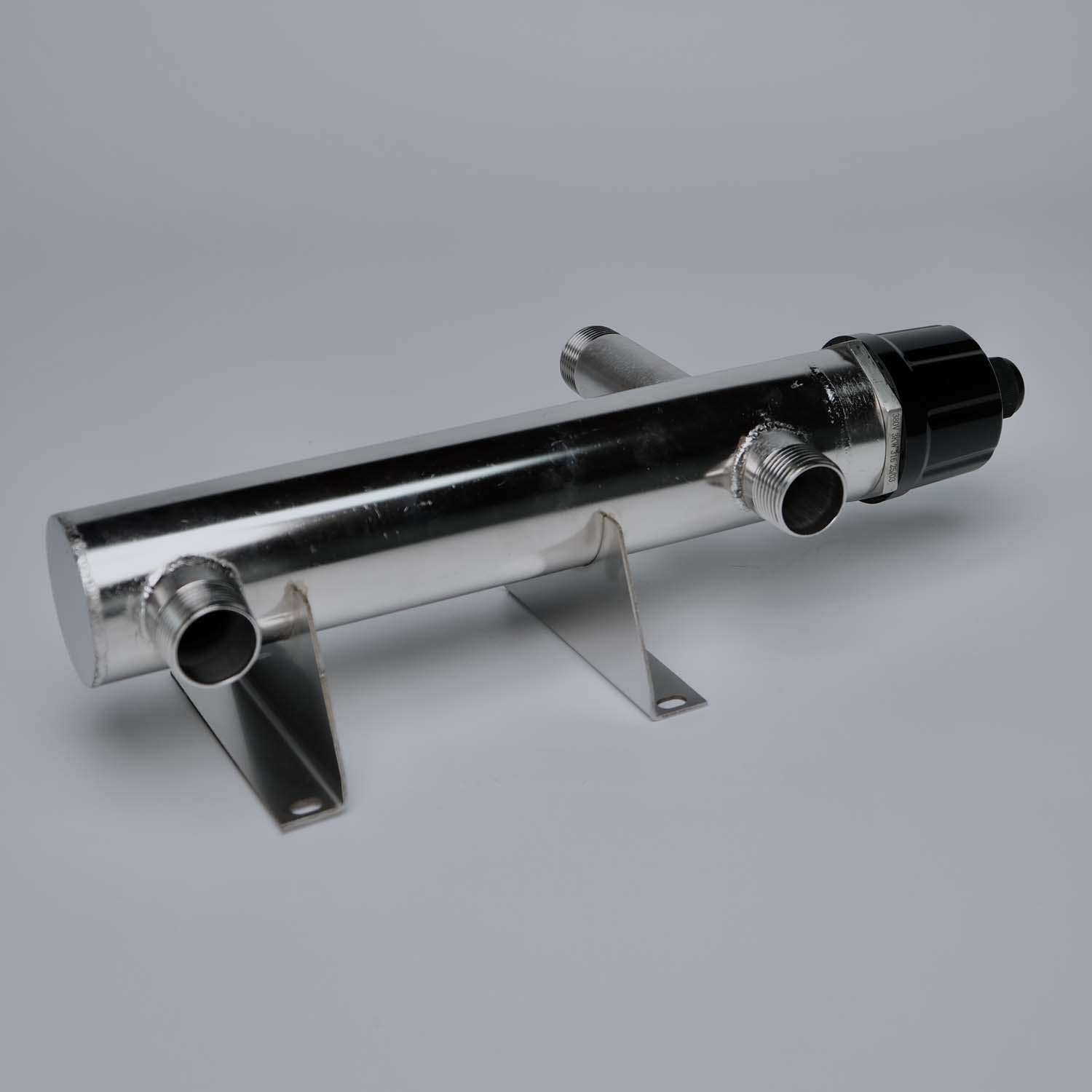

The stainless steel inline heater is designed for efficient heating of flowing liquids such as water, oil, or chemical solutions. It features an integrated tubular heating element enclosed in a durable stainless steel housing, ensuring excellent heat transfer and long service life. With threaded inlet and outlet connections, the heater can be easily installed in a pipeline system for continuous or circulating heating applications.
| Item | Specification |
| Material | Stainless Steel / Copper / Nickel-Iron-Chromium Alloy |
| Structure Type | U-Shaped / Double U / Threaded Plug |
| Tube Diameter | Φ6–16mm |
| Heating Length | 150–2000mm (Customizable) |
| Rated Voltage | 110V–480V |
| Power Range | 300W–10kW |
| Heating Wire | Ni-Cr Resistance Wire |
| Insulation Material | High-Purity Magnesium Oxide (MgO) |
| Sheath Surface Temperature | ≤850°C |
| Surface Treatment | Polished / Passivated / Anti-Oxidation |
| Service Life | ≥10,000 hours under rated conditions |
● Compact and durable stainless steel construction
● Fast and efficient heating with uniform temperature distribution
● Corrosion-resistant and suitable for continuous operation
● Easy installation with threaded connections and mounting brackets
● Compatible with a wide range of voltages and power ratings
● Long service life under rated conditions
● Industrial water heating systems
● Chillers and cooling circulation systems
● Oil and chemical liquid heating
● Food and beverage processing equipment
● Laboratory and testing equipment
● HVAC and pipeline heating
