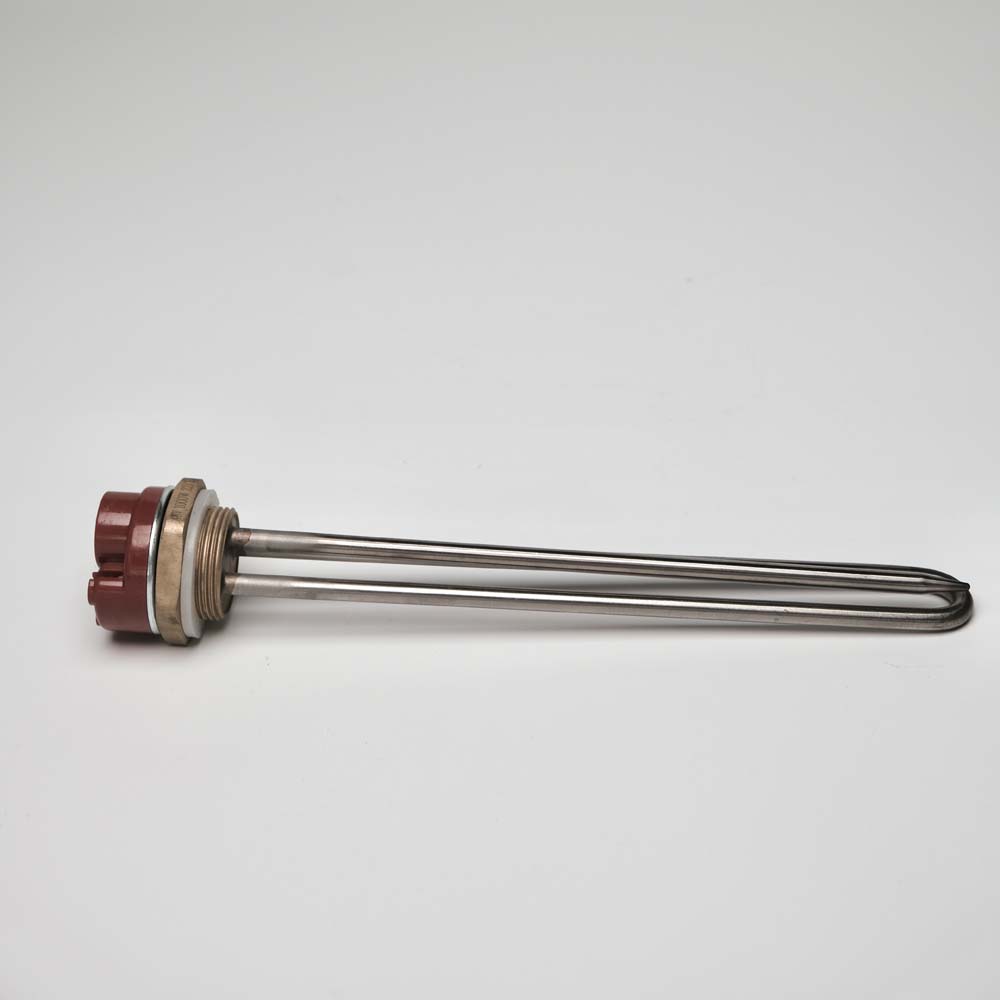

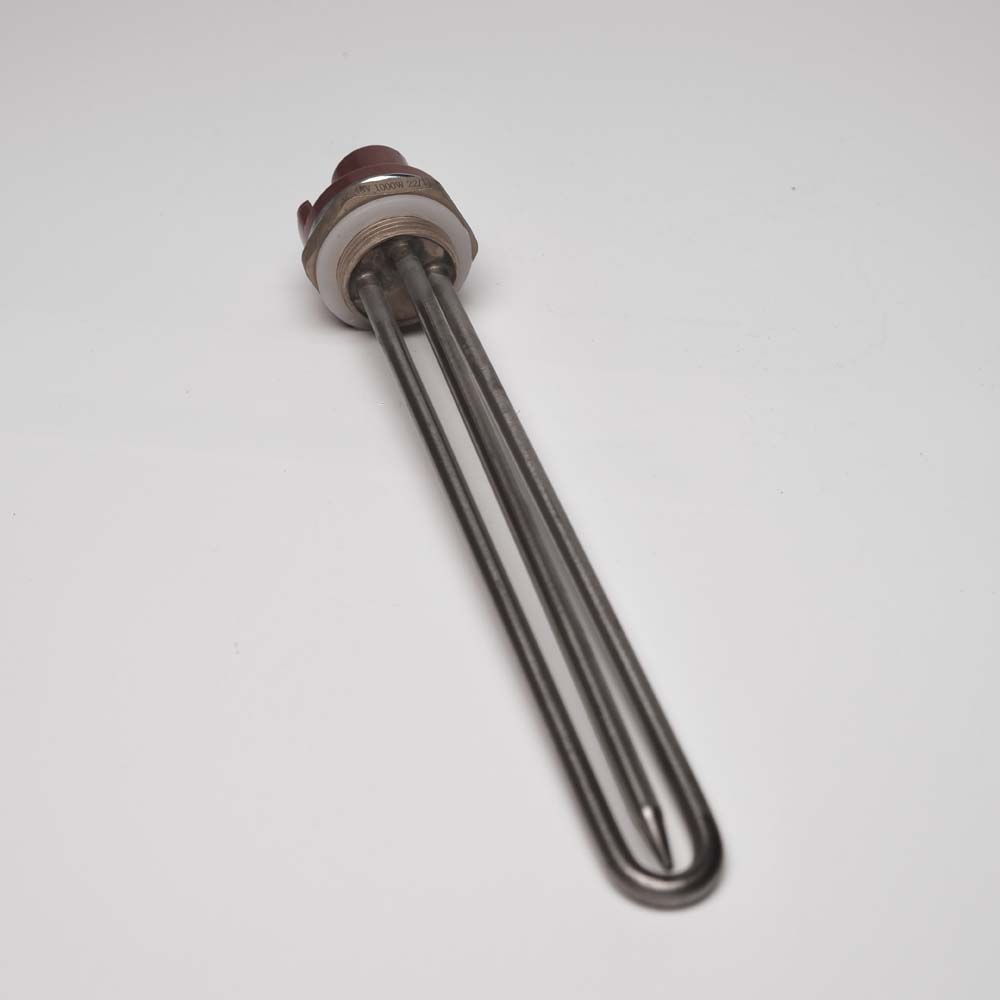

The water heater heating element is designed for efficient and reliable water heating in domestic and commercial systems.
It converts electrical energy into heat through a high-resistance Ni–Cr heating wire, which is enclosed in a stainless steel, copper, or nickel–iron–chromium alloy sheath for maximum durability and corrosion resistance.
This heating element offers rapid temperature rise, uniform heat distribution, and long service life, making it ideal for both storage-type and instant water heaters.
With customizable voltage, power, and size options, it provides excellent adaptability for various installation requirements.
| Item | Specification |
| Material | Stainless Steel / Copper / Nickel-Iron-Chromium Alloy |
| Structure Type | Straight / U-Shaped / Custom Design |
| Tube Diameter | Φ6–16mm |
| Heating Length | 150–2000mm (Customizable) |
| Rated Voltage | 110V–480V |
| Power Range | 500W–10kW |
| Heating Wire | Ni-Cr Resistance Wire |
| Insulation Material | High-Quality Electrical Insulator |
| Sheath Surface Temperature | ≤850°C |
| Surface Treatment | Polished / Passivated / Anti-Oxidation |
| Service Life | ≥10,000 hours under rated conditions |
● High Efficiency: Fast water heating and excellent thermal conduction.
● Durable Construction: Corrosion-resistant sheath materials ensure long lifespan.
● Stable Performance: Reliable operation under continuous heating conditions.
● Energy Saving: Optimized design for reduced power loss and improved efficiency.
● Safe & Reliable: Strong insulation and electrical safety design.
● Customizable Design: Voltage, power, tube size, and shape available upon request.
● Domestic and commercial water heaters
● Storage-type and instant water heating systems
● Centralized heating tanks and boilers
● Industrial liquid heating equipment
● Temperature control and water circulation systems
