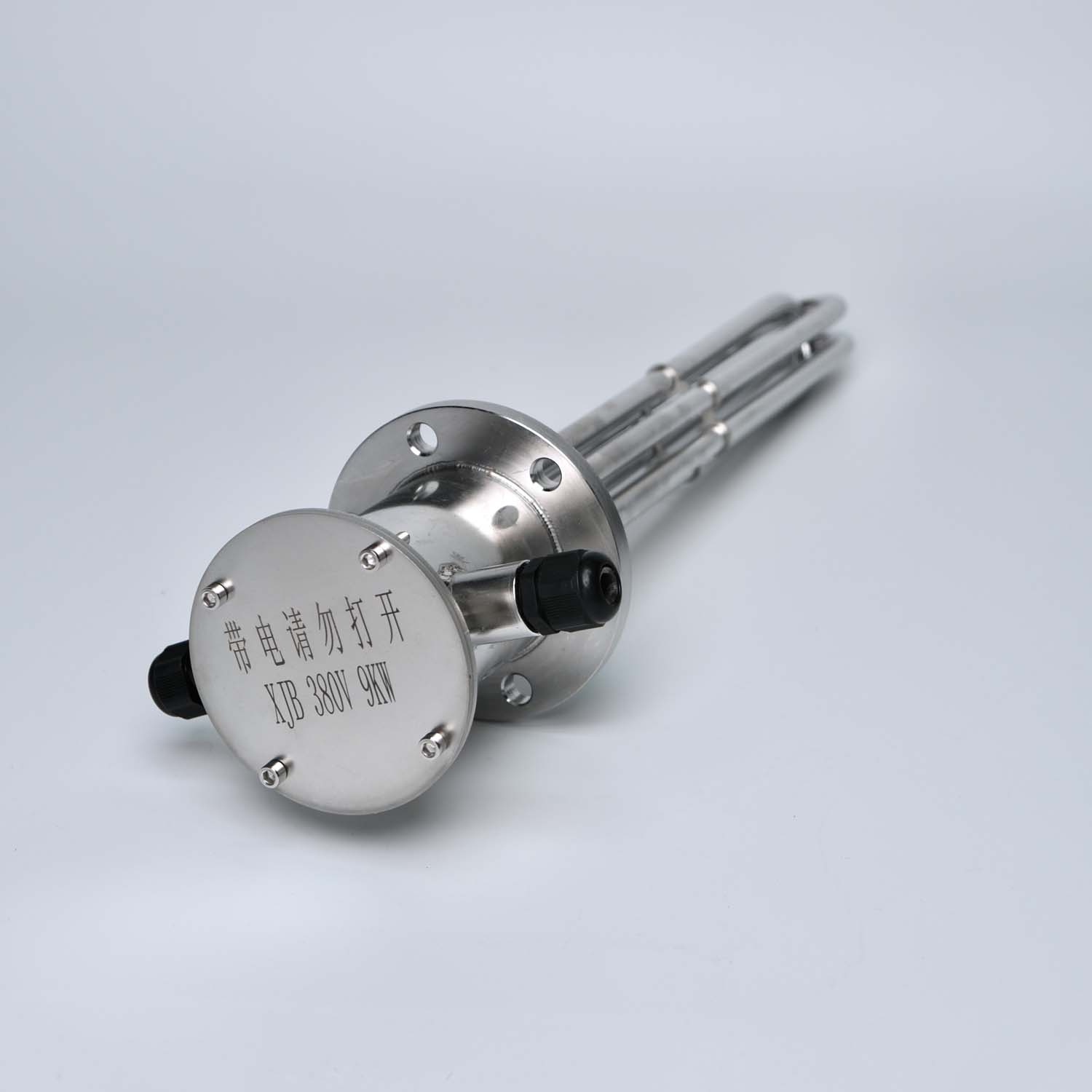

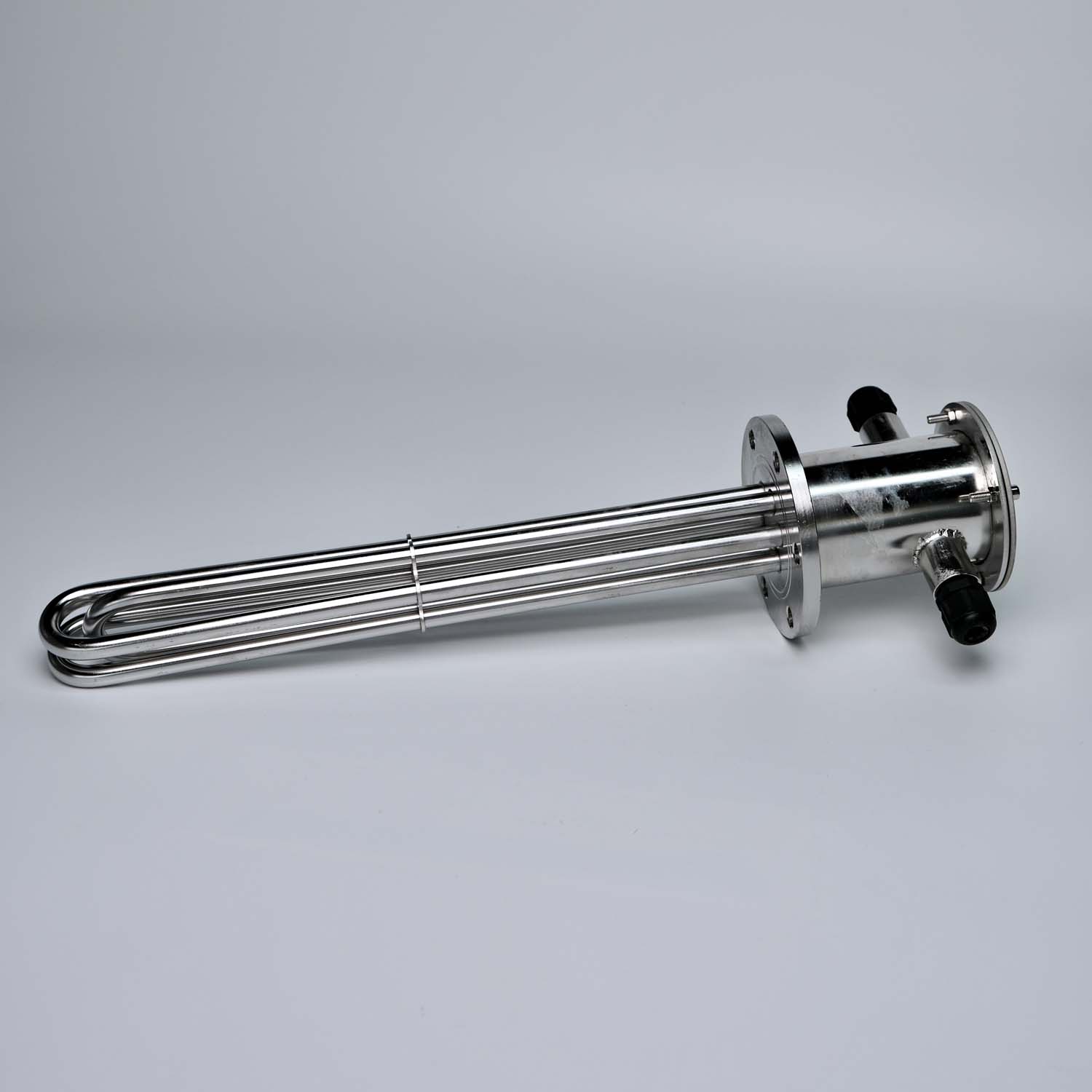

The explosion-proof flange heating element is designed for safe and efficient heating in hazardous or explosive environments.
It integrates a flange mounting structure with a sealed explosion-proof junction box, ensuring reliable electrical insulation and leak-proof performance.
This heater is ideal for heating liquids, gases, or oils in tanks, pipelines, and industrial process systems.
Inside the tube, a Ni–Cr resistance wire generates heat, which is transferred through high-purity magnesium oxide Nickel–Iron–Chromium Alloy to the stainless steel, copper, or nickel–iron–chromium alloy sheath.
The flange connection provides easy installation and secure sealing, while the explosion-proof enclosure ensures safe operation under high pressure, humidity, or volatile conditions.
| Item | Specification |
| Material | Stainless Steel / Carbon Steel / Nickel-Iron-Chromium Alloy |
| Structure Type | Flange-Mounted Explosion-Proof Heating Element |
| Flange Standard | GB / ANSI / DIN (Customizable) |
| Tube Diameter | Φ8–25mm |
| Heating Length | 200–6000mm (Customizable) |
| Rated Voltage | 110V–480V |
| Power Range | 100W–200kW |
| Heating Wire | Ni-Cr Resistance Wire |
| Insulation Material | High-Purity Magnesium Oxide (MgO) |
| Sheath Surface Temperature | ≤870°C |
| Explosion-Proof Grade | Ex d IIB T1–T6 (Customizable) |
| Surface Treatment | Polished / Passivated / Anti-Corrosion Coating |
| Service Life | ≥10,000 hours under rated conditions |
● Explosion-Proof Safety: Specially designed junction box and sealing prevent ignition in hazardous environments.
● Reliable Flange Mounting: Ensures tight installation and leak-free operation under pressure.
● High Heating Efficiency: Excellent heat transfer and uniform temperature distribution.
● Durable Construction: Built with corrosion- and oxidation-resistant materials for long-term use.
● Customizable: Voltage, power, flange size, and explosion-proof grade can be tailored to application needs.
● Stable Performance: Strong insulation, high mechanical strength, and consistent operation in harsh conditions.
● Oil and gas heating systems
● Chemical and petrochemical industries
● Pressure vessels and storage tanks
● Industrial water and fuel oil heating
● Air and gas preheating systems
● Explosion-proof environments requiring safe heat sources
