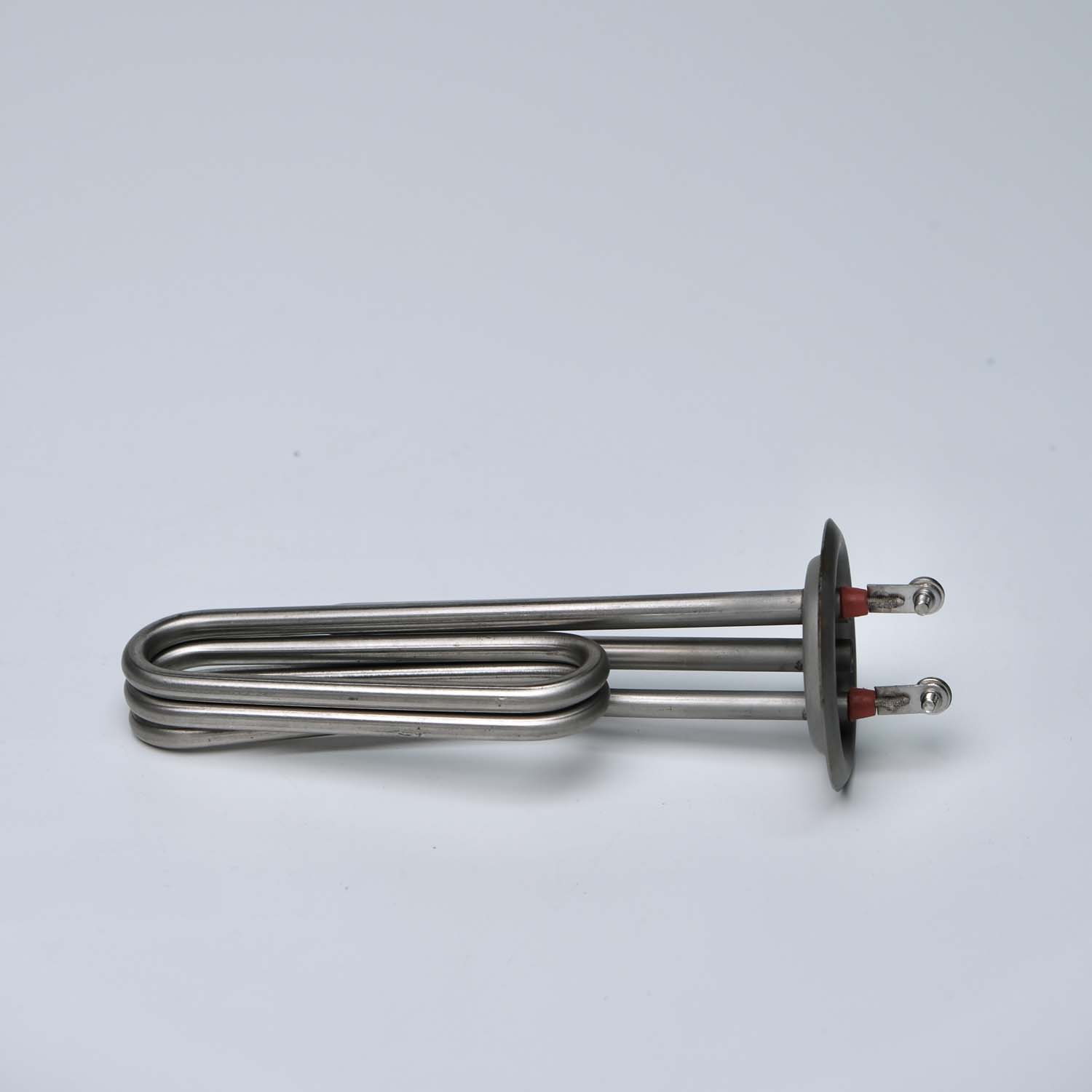

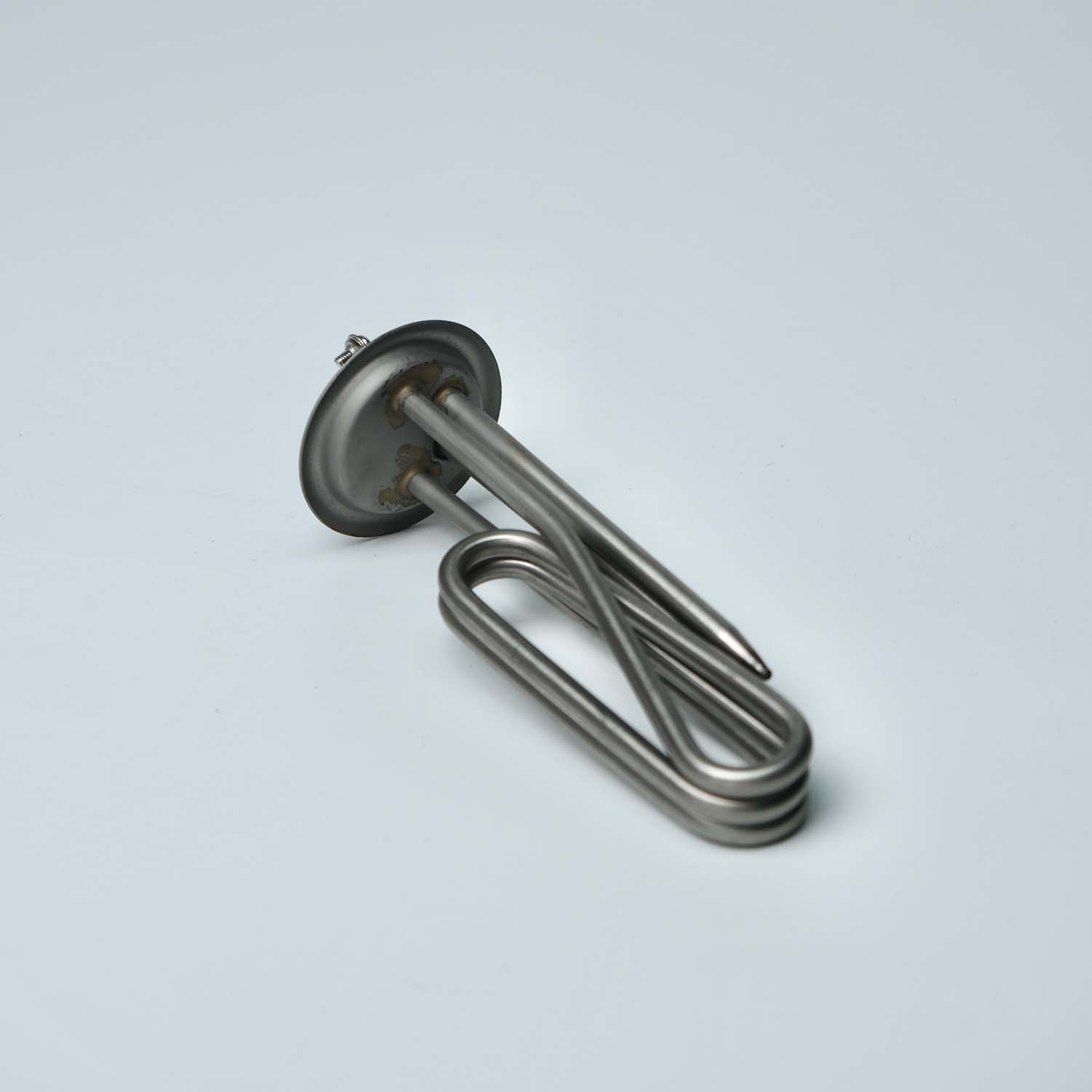

The boiling water heater element is designed for rapid and efficient water heating in boiling water dispensers, water boilers, and similar appliances.
It features a high-efficiency heating structure that provides fast temperature rise and stable heat output, ensuring a constant supply of boiling water.
The heating element is made from stainless steel, copper, or nickel–iron–chromium alloy, offering excellent corrosion resistance, durability, and safety during continuous high-temperature operation.
It is built to deliver consistent heating performance, even in hard water environments, and can be customized for various voltage, power, and installation needs.
| Item | Specification |
| Material | Stainless Steel / Copper / Nickel-Iron-Chromium Alloy |
| Structure Type | U-Shaped / Double U / Custom Design |
| Tube Diameter | Φ6–16mm |
| Heating Length | 150–2000mm (Customizable) |
| Rated Voltage | 110V–480V |
| Power Range | 100W–10kW |
| Heating Wire | Ni-Cr Resistance Wire |
| Insulation Material | High-Quality Electrical Insulator |
| Sheath Surface Temperature | ≤850°C |
| Surface Treatment | Polished / Anti-Oxidation / Passivated |
| Service Life | ≥10,000 hours under rated conditions |
● Fast Heating: Quickly brings water to boiling temperature.
● High Efficiency: Optimized thermal conduction for stable and uniform heating.
● Durable Construction: Resistant to corrosion and scaling in high-temperature water.
● Safe & Reliable: Excellent insulation and electrical safety design.
● Energy Saving: Designed for minimal heat loss and extended lifespan.
● Customizable Design: Voltage, power, and size tailored to different water boiler models.
● Commercial and household water boilers
● Boiling water dispensers and tea machines
● Hot beverage preparation systems
● Electric kettles and water heating tanks
● Industrial and catering hot water supply units
