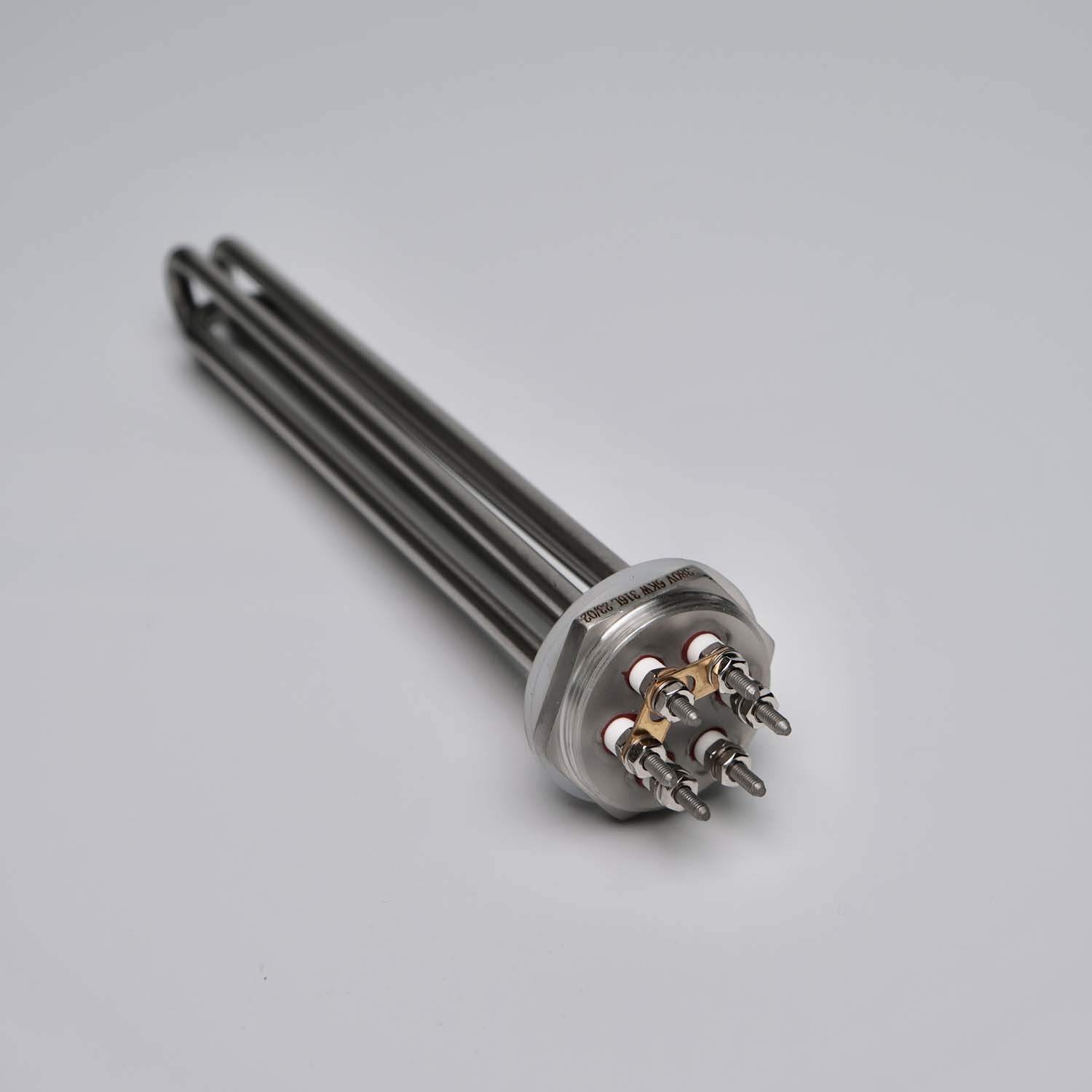

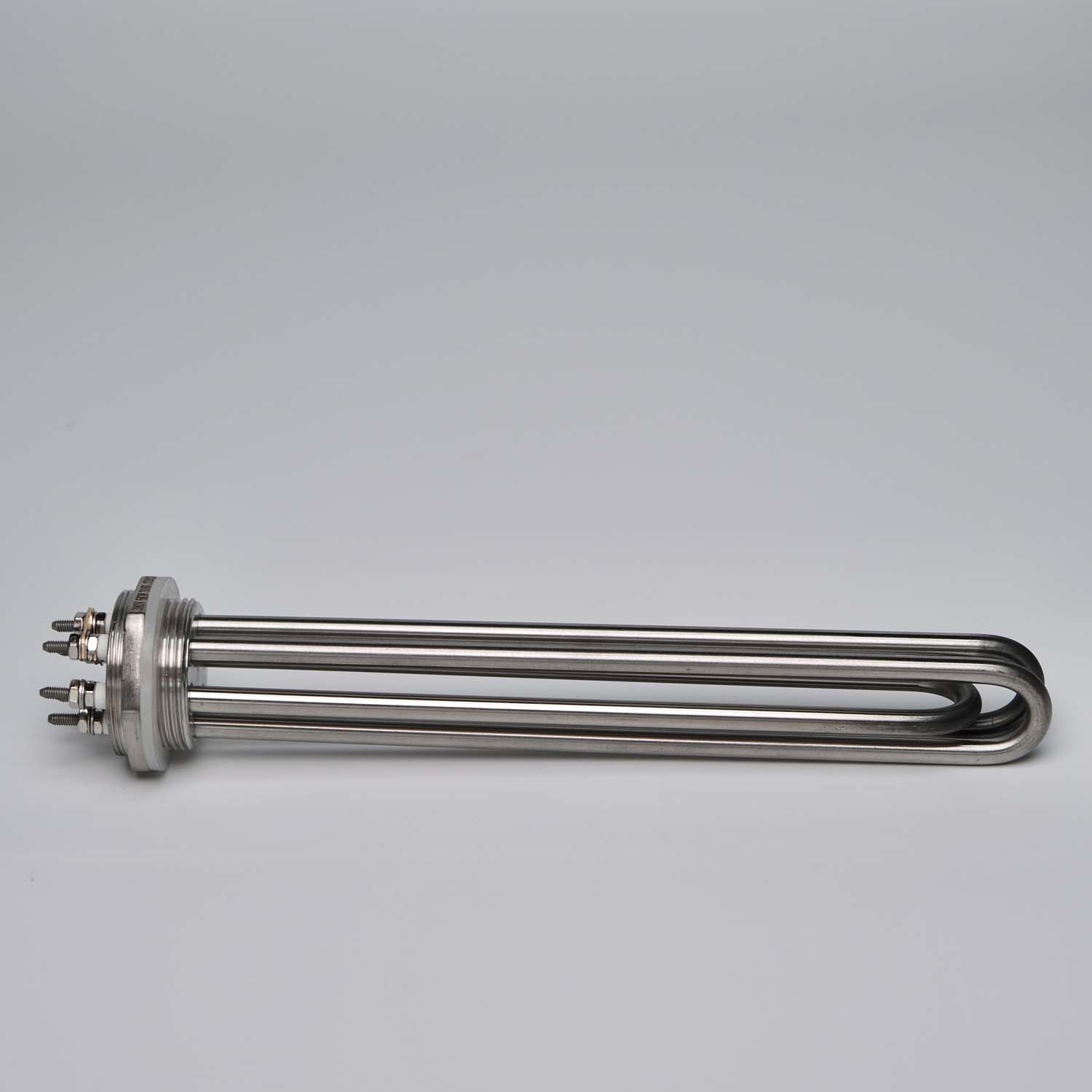

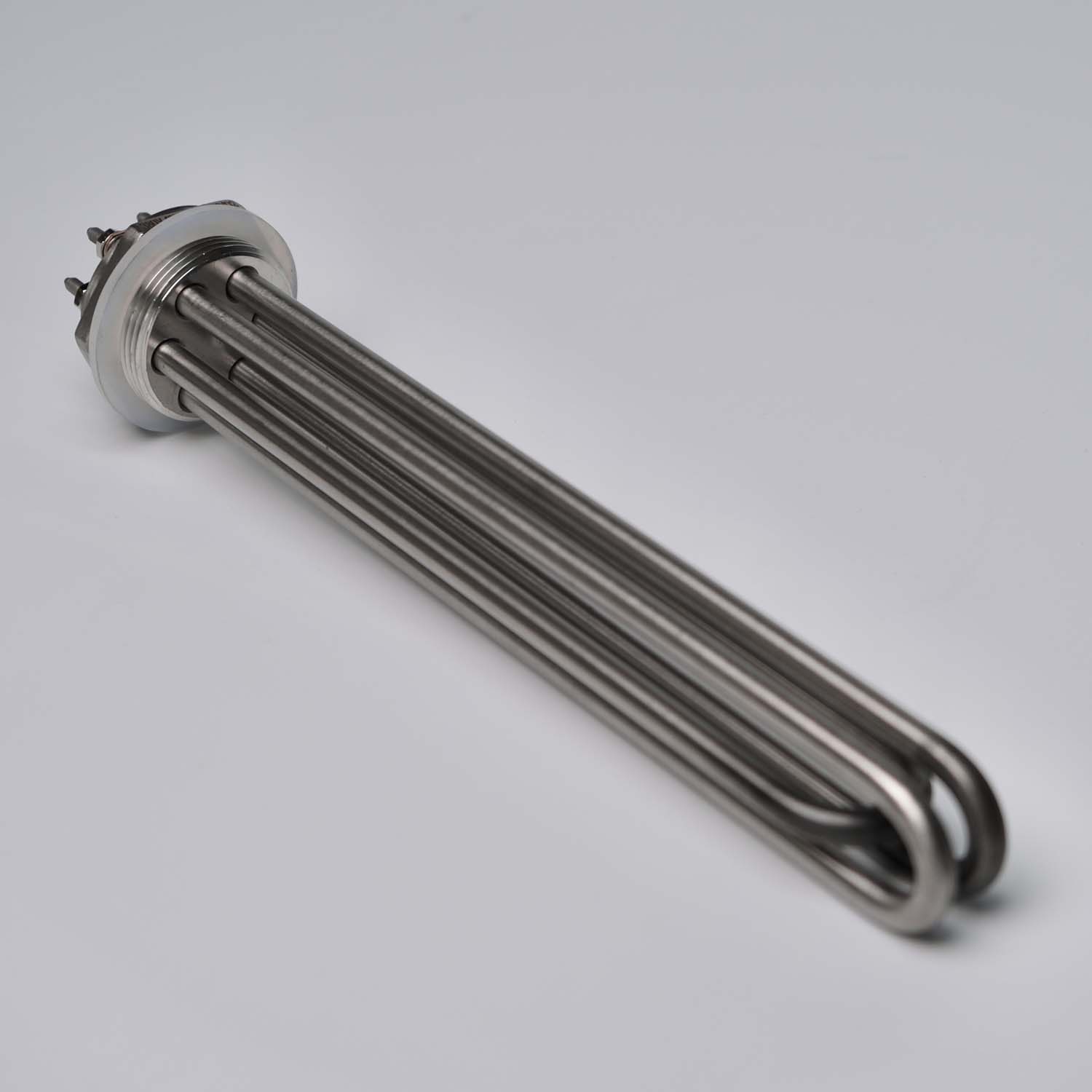

The threaded heating tube, also known as a screw-in heating element, is designed for efficient and reliable heating in a wide range of industrial and commercial applications. Its threaded connection structure allows for easy installation and secure sealing in tanks, pipes, or heating chambers.
Inside the heating tube, electric current passes through a high-resistance Ni-Cr wire, generating heat that is efficiently conducted through high-purity magnesium oxide insulation powder to the metal sheath. The threaded interface ensures tight contact with the heating medium, providing fast heat transfer and stable temperature control.
Constructed from high-grade stainless steel, copper, or Incoloy materials, the threaded heating tube offers excellent resistance to oxidation, corrosion, and high temperatures. It provides long service life, stable operation, and customizable configurations for various heating systems such as water heaters, oil heaters, and industrial tanks.
| Item | Specification |
| Material | Stainless Steel / Copper / Incoloy (Customizable) |
| Thread Size | 1/2'', 3/4'', 1'', or customized |
| Tube Diameter | Φ6–16mm |
| Length | 100–2000mm (Customizable) |
| Heating Wire | Ni-Cr resistance wire |
| Insulation | High-purity magnesium oxide powder |
| Operating Temperature | Up to 800°C |
| Input Voltage & Power | Customizable according to customer requirements |
| Installation Method | Threaded mounting / Screw-in connection |
| Surface Treatment | Polished or oxidized finish (optional) |
| Service Life | ≥10,000 hours under rated conditions |
● Easy Installation: Threaded interface allows fast and secure mounting without complex tools.
● High Thermal Efficiency: Direct contact with the heating medium ensures quick and uniform heat transfer.
● Durable Construction: Stainless steel, copper, or Incoloy sheath provides excellent corrosion and temperature resistance.
● Energy Efficient: Optimized design reduces energy loss while maintaining stable heating performance.
● Long Service Life: Built for continuous operation under demanding industrial conditions.
● Customizable Options: Thread size, voltage, power, and length can be tailored for different applications.Reliable Operation: High mechanical strength, moisture resistance, and stable insulation performance.
● Water heaters, oil heaters, and boilers
● Industrial tanks and process heaters
● Air heating and drying equipment
● Food processing and packaging machinery
● Chemical and petrochemical heating systems
● HVAC and environmental control equipment
● Laboratory and testing instruments requiring precise temperature control
